Machine Components
55
Product Overview
2

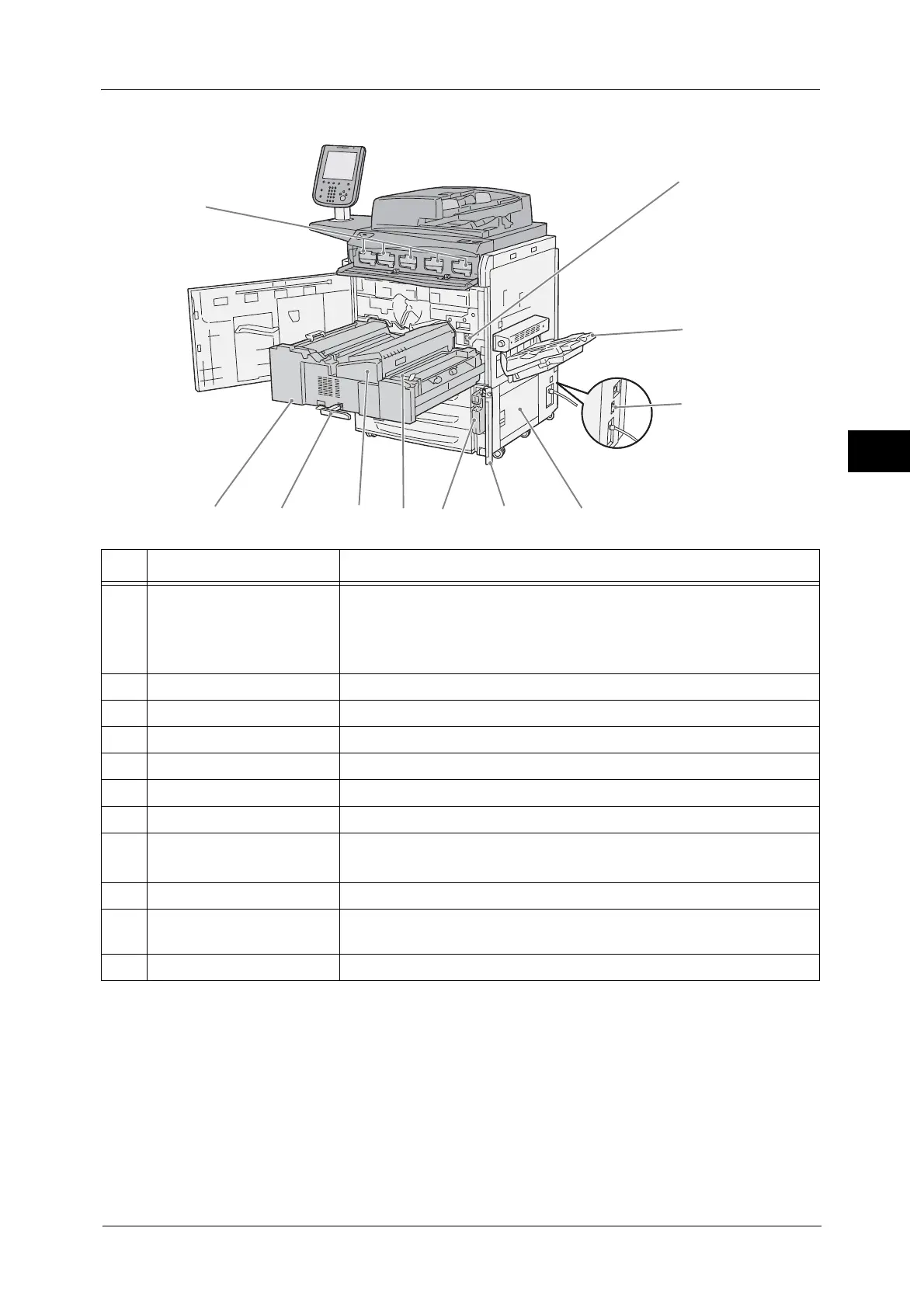

Inside and right views of the machine
1
2
3
4
5
68710
11
9
No. Component Function
1 Main power switch Switches the main power of the machine on and off. Always follow the
instructions by the system administrator.
Important • Always switch the power off before switching the main power off.
For more information, refer to "Power Source" (P.64).
2 Offset Catch Tray (optional) Outputs are delivered here.
3 Ground fault interrupter Automatically turns the machine off when a current leakage is detected.
4 Bottom right door Open this door to clear paper jams.
5 Waste toner container door Open this door to replace the waste toner container.
6 Waste toner container Used to collect waste toner.
7 Decurler (handle [2b]) Flattens curled paper. Open this decurler when clearing paper jams.
8 Fusing unit Fuses toner on paper.
Important • Do not touch this unit as it is extremely hot.
9 Handle Used to pull out the transfer unit.
10 Transfer unit Transfers toner images on the drum to paper. Open this unit to clear paper
jams.
11 Toner cartridges Contain toner (image forming power).
To Next Page
