Product Overview
2

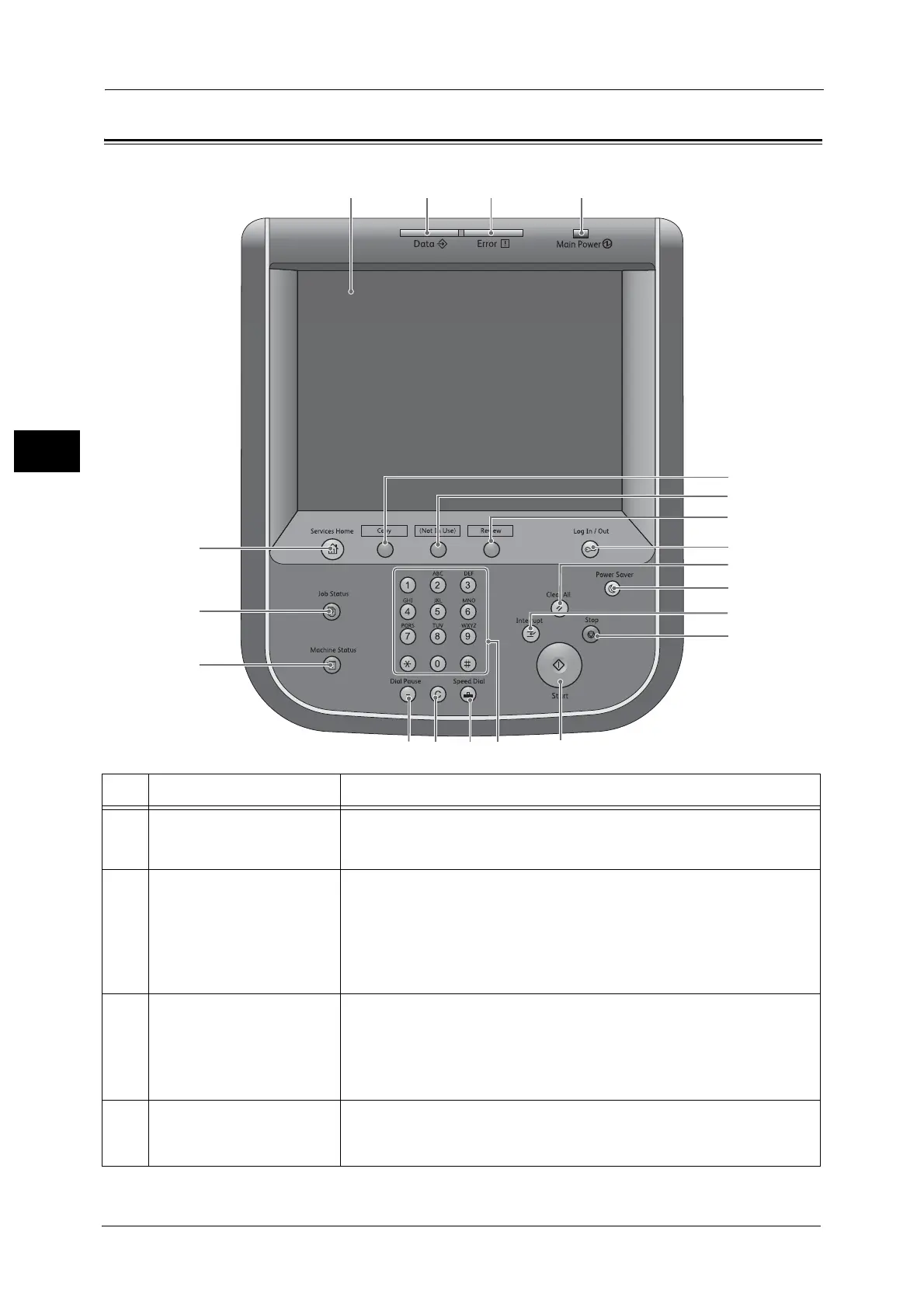

Control Panel
1 2 3 4
20
18
19
14
5
6
7
8
9
10
11
12
131617 15
No. Component Function
1 Touch screen Displays messages required for operation and buttons for various features.
You can directly touch the touch screen to instruct operations and set
features.
2 <Data> indicator Blinks when the machine is sending or receiving data.
This indicator lights up when data is stored in the machine's memory.
You can check stored scan files in a Folder List. For information on the Folder List, refer to
"Folder List" (P.626).
You can change the blink pattern of the <Data> indicator. For more information, refer to
"Data Indicator" (P.456).
3 <Error> indicator Blinks if a system error occurs.
This indicator lights up when a problem other than a system error occurs
with the machine, including paper jams and running out of paper.
If the <Error> indicator blinks, contact our Customer Support Center.
If the <Error> indicator lights up, refer to "Problem Solving" (P.727).
4 <Main Power> indicator Lights up when the main power is switched on.
Note • If the main power is not switched on, the machine will not be powered on
even when the power is switched on.
