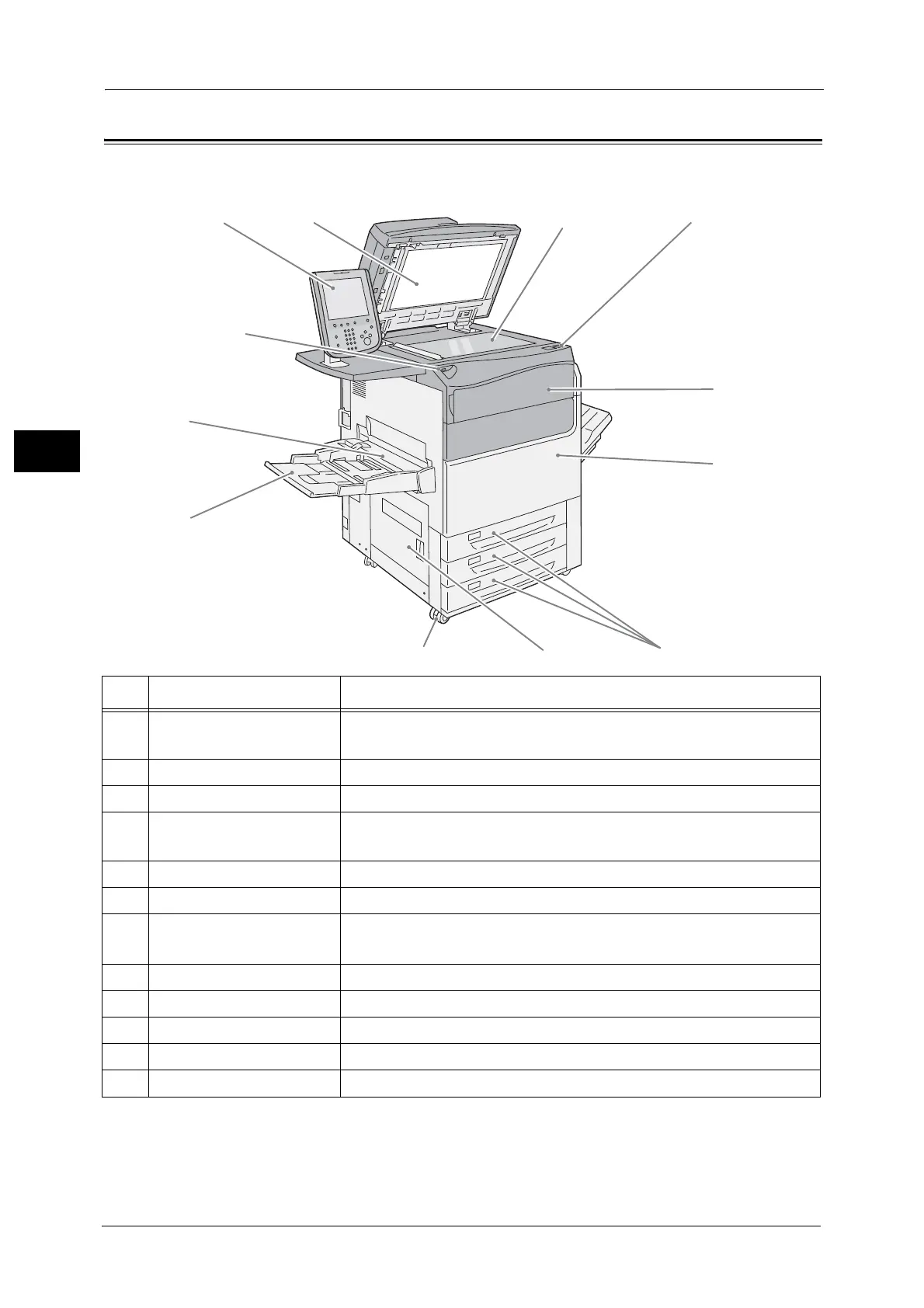

Machine Components
 Main unit
9
8
7
6
4321
5
11
10
12
No. Component Function
1 Control panel Consists of operation buttons, LED indicators, and a touch screen.
For more information, refer to "Control Panel" (P.74).
2 Document cover Holds a document in place.
3 Document glass Load a document here.
4 Power switch Switches the power of the machine on and off.
For more information, refer to "Power Source" (P.64).
5 Machine front toner cover Open this cover to replace toner cartridges.
6 Machine front door Open this door to clear paper jams or replace consumables.
7 Tray 1, 2, 3 Load paper here.
Note • The machine is not equipped with Tray 4.
8 Bottom left door Open this door to clear paper jams.
9 Casters Used to move the machine. Lock them after installation.
10 Tray 5 (Bypass) Used for loading non-standard paper that cannot be loaded in Trays 1 to 3.
11 Tray 5 (Bypass) top cover Open the top cover to clear paper jams.
12 USB memory slot Insert a USB 2.0 memory device into this slot directly.
