Fuji Xerox Versant 80 Press

To Next Page

To Previous Page

Paper Jams

897

Problem Solving

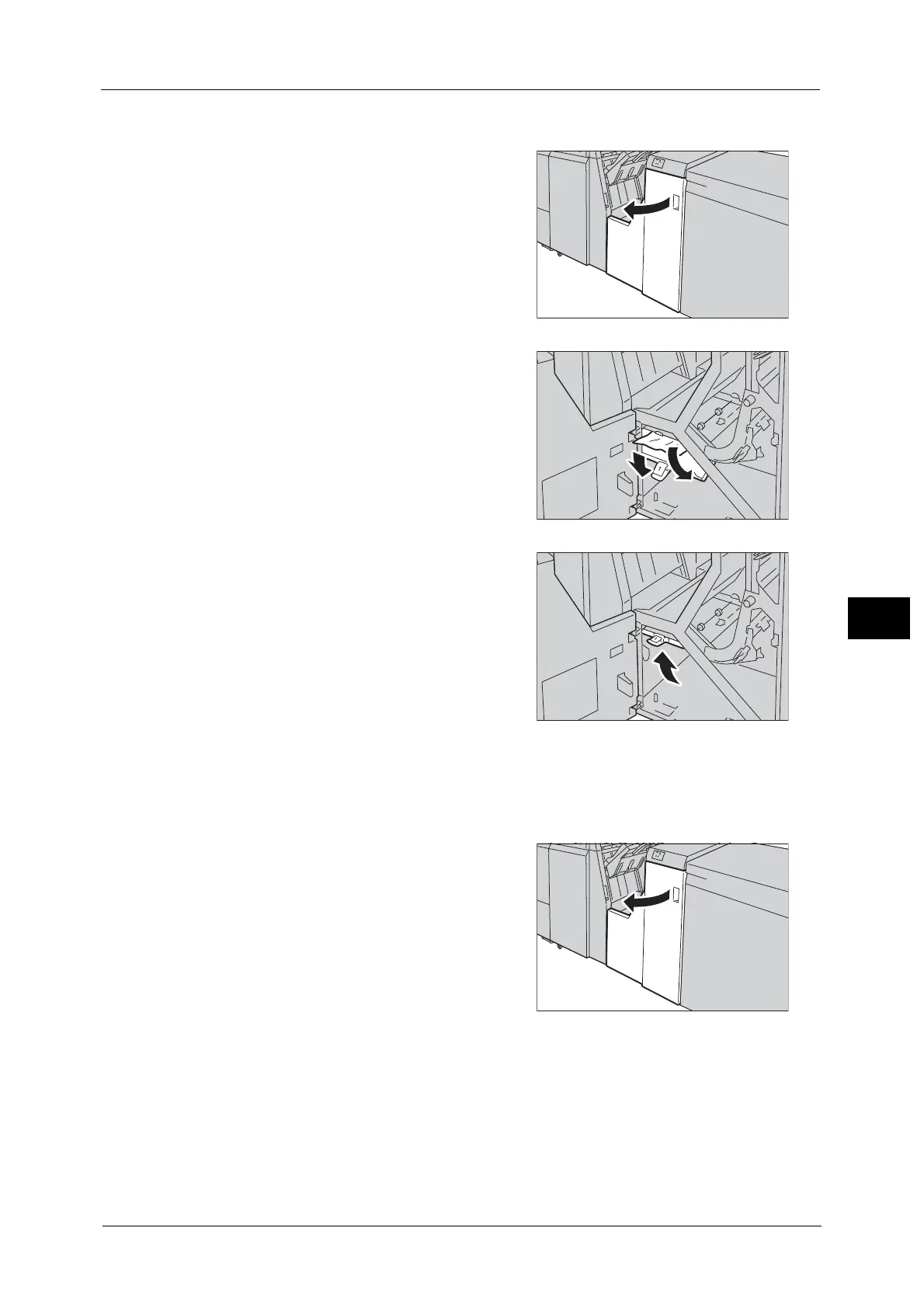

When the Lamp 1 is Lit

Open the cover of the Finishing Transport

Module.

2 Open lever [1] downward and remove jammed

paper.

3 Return lever [1] to its original position.

4 Close the Cover.

When the Lamp 2 is Lit

Open the cover of the Finishing Transport

Module.
