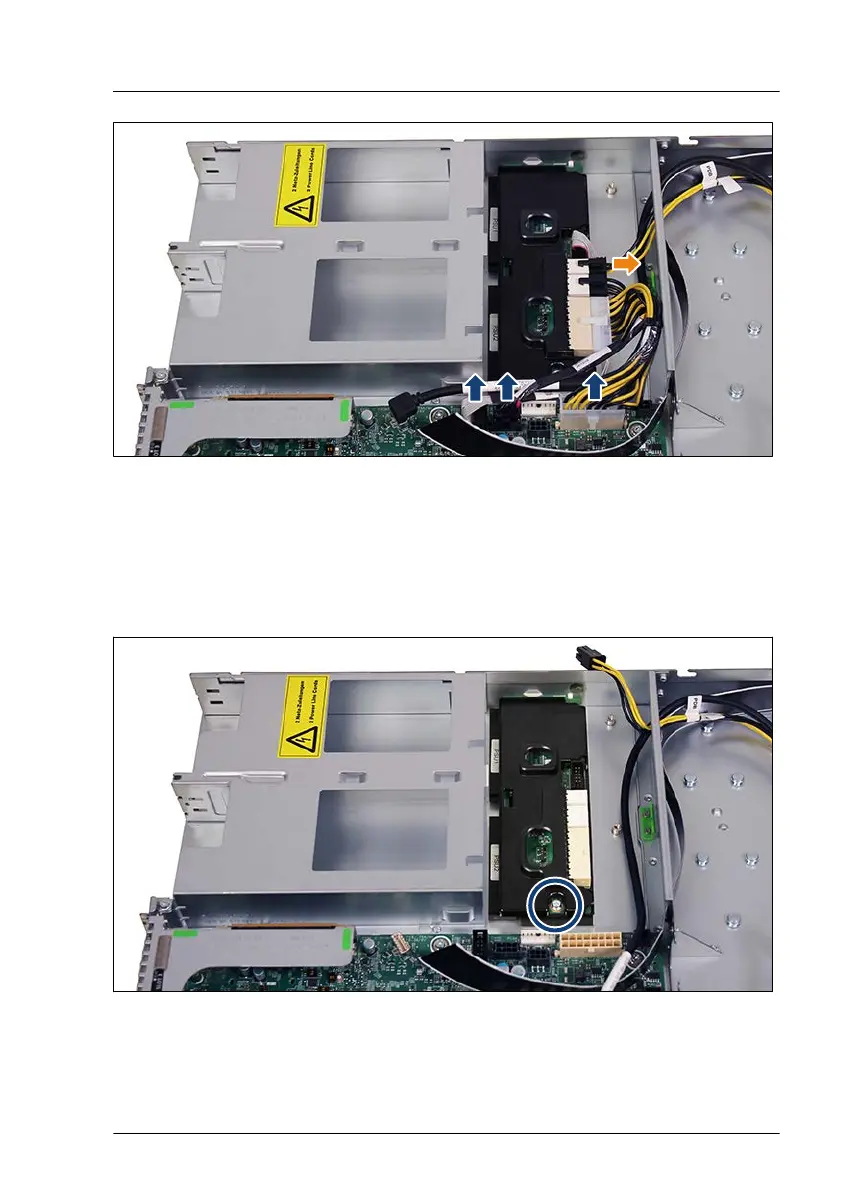

Figure 38: Disconnecting cables
▶
Disconnect the three power cables from the system board connectors "P30",
"PWR2" and "PWR1" (see blue arrows).
▶
Disconnect the HDD power cable from the power distribution board (see
orange arrow).
Figure 39: Removing the screw
▶
Remove the screw (see circle).
Power supply unit (PSU)
RX1330 M5 Upgrade and Maintenance Manual 109
