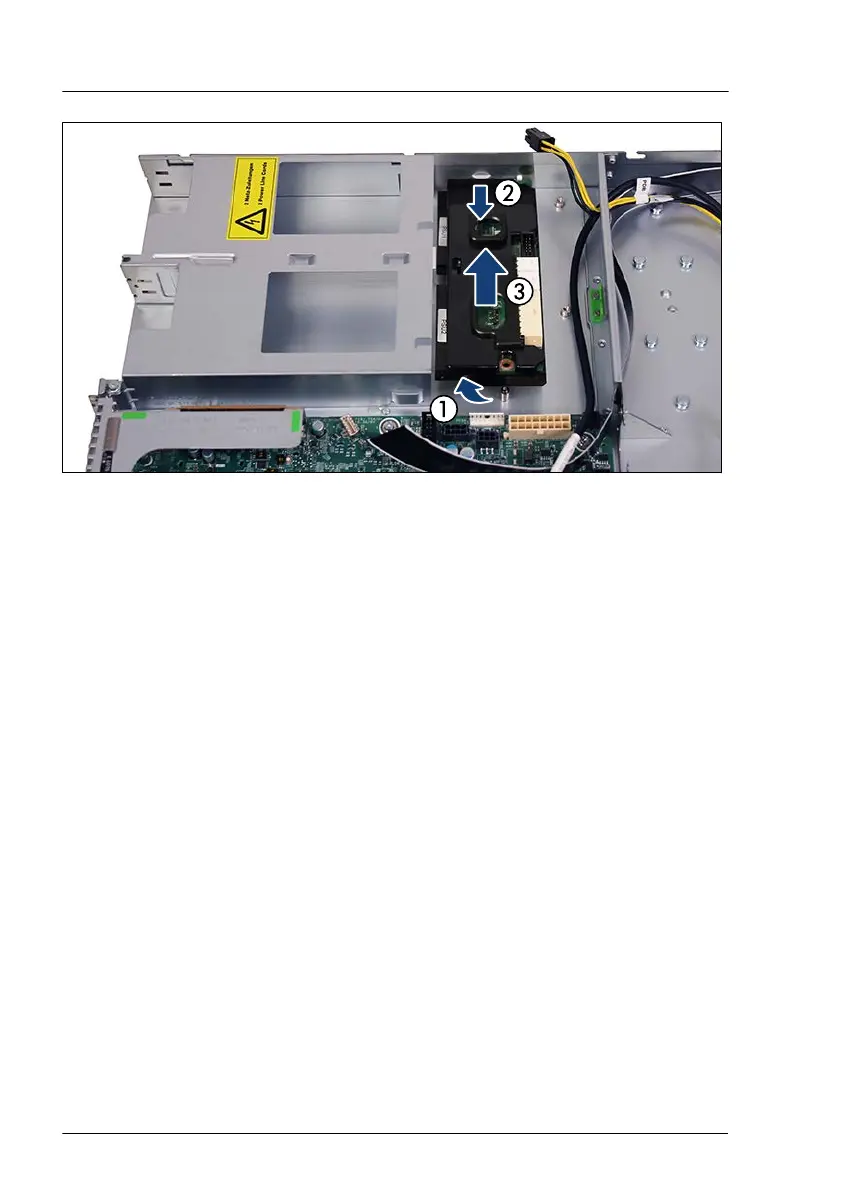

Figure 40: Removing the power distribution board
▶
Lift the power distribution board out of the centering ring on the standoff (1)
and move it in direction to the system board (2).
▶
Remove the power distribution board upward (3).
▶
Disconnect the two remaining power cables from the defective power
distribution board.
Power supply unit (PSU)
110 Upgrade and Maintenance Manual RX1330 M5
