Installing the new power distribution board

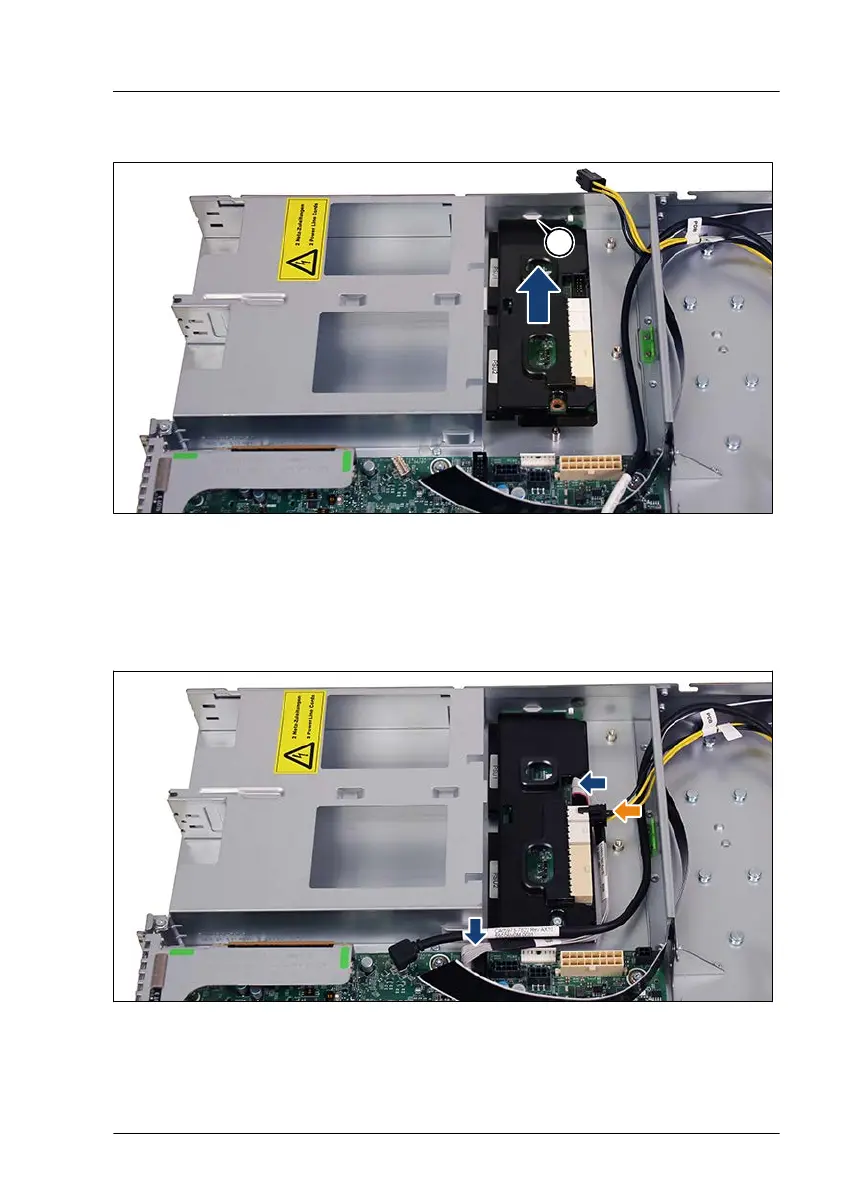

Figure 41: Installing the power distribution board
▶
Insert the power distribution board and slide it in the guidings of the chassis
(A).
▶
Fasten the power distribution board with one screw, see Figure 39
.
Figure 42: Connecting cables (A)
Power supply unit (PSU)
