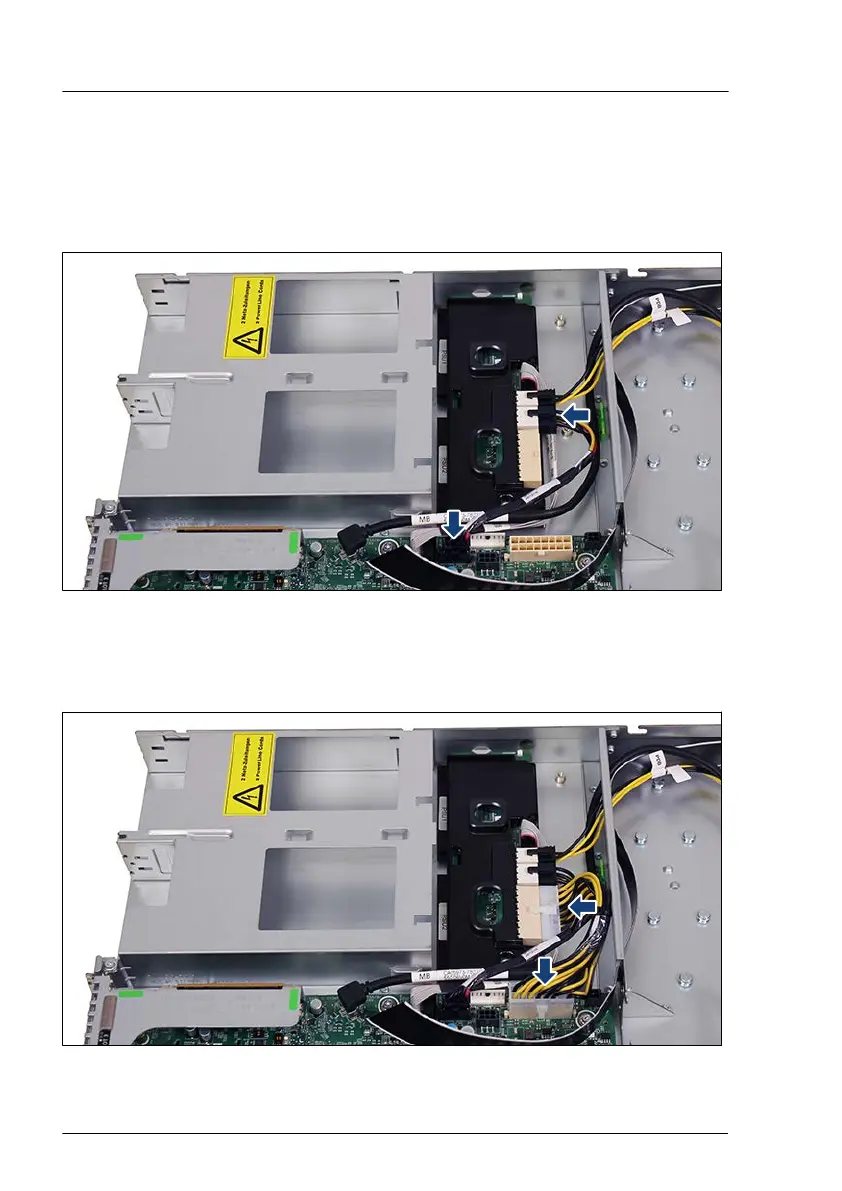

Connect the power cable to the power distribution board and to connector
"P30" on the system board (see blue arrow).
▶
Connect the power cable that is coming from the HDD backplane to the
power distribution board (see orange arrow).
Figure 43: Connecting cables (B)
▶
Connect the power cable to the power distribution board and to connector
"PWR2" on the system board.
Figure 44: Connecting cables (C)
Power supply unit (PSU)
112 Upgrade and Maintenance Manual RX1330 M5
