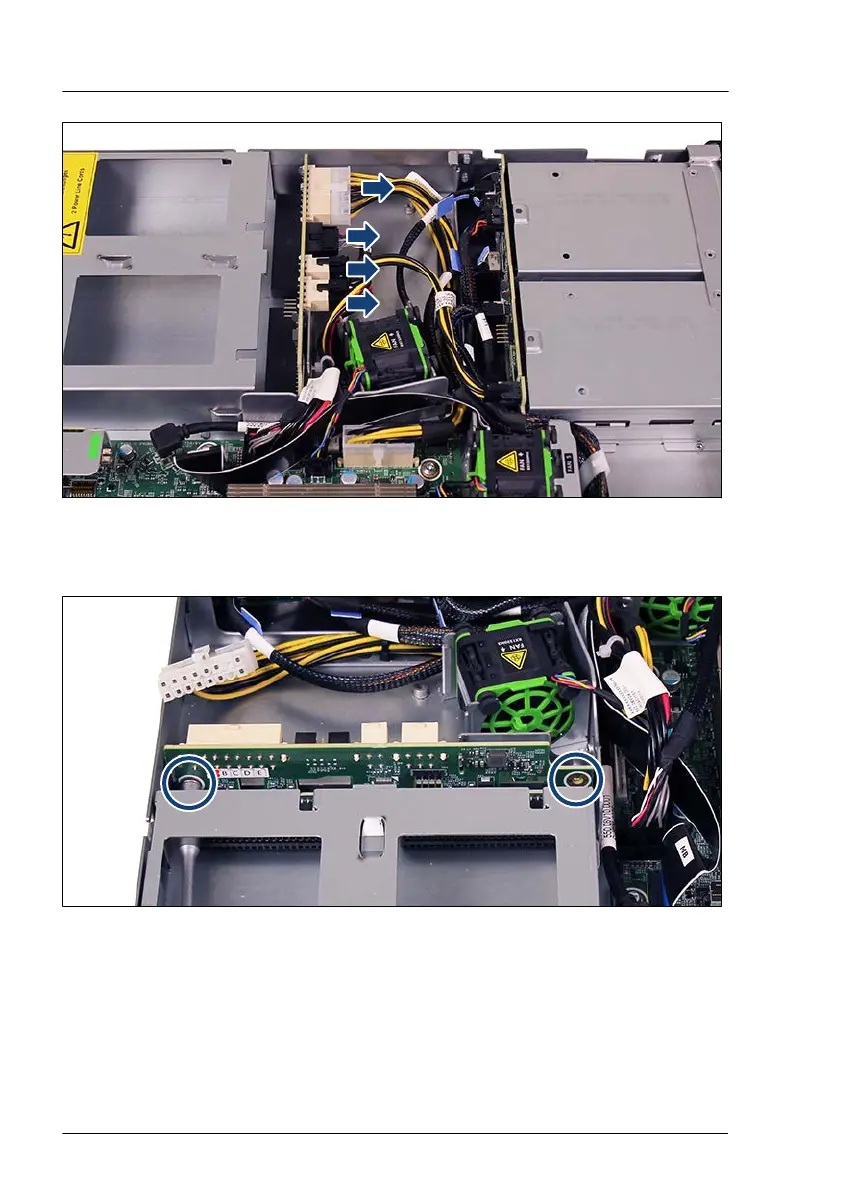

Figure 45: Disconnecting cables

▶

Disconnect the four power cables from the power distribution board.

Figure 46: Removing the screws

▶

Remove the two screws (see circles).

Power supply unit (PSU)

114 Upgrade and Maintenance Manual RX1330 M5
