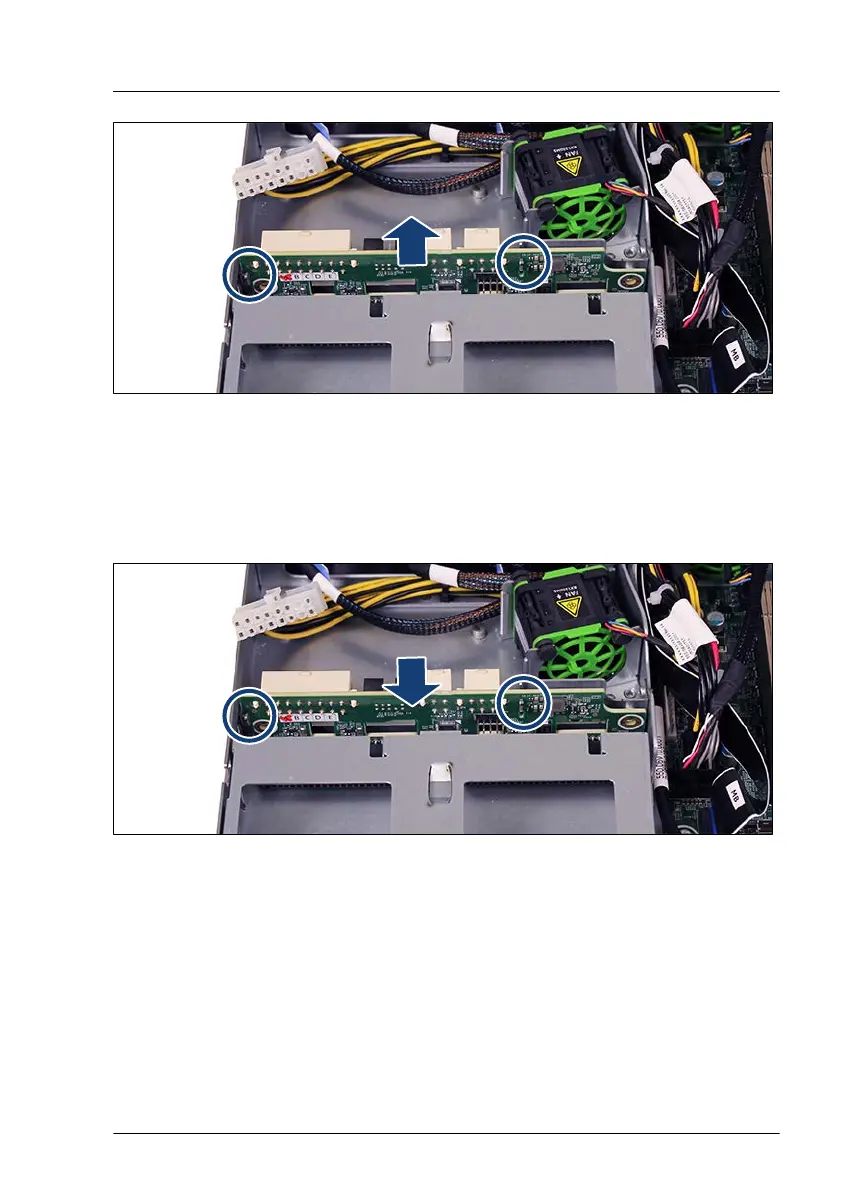

Figure 47: Removing the power distribution board
▶
Lift the power distribution board from the two hooks (see circles) and
remove it.
Installing the new power distribution board
Figure 48: Installing the power distribution board
▶
Position the power distribution board on the two hooks (see circles).
▶
Fasten the power distribution board with two screws, see Figure 46.
Power supply unit (PSU)
RX1330 M5 Upgrade and Maintenance Manual 115
