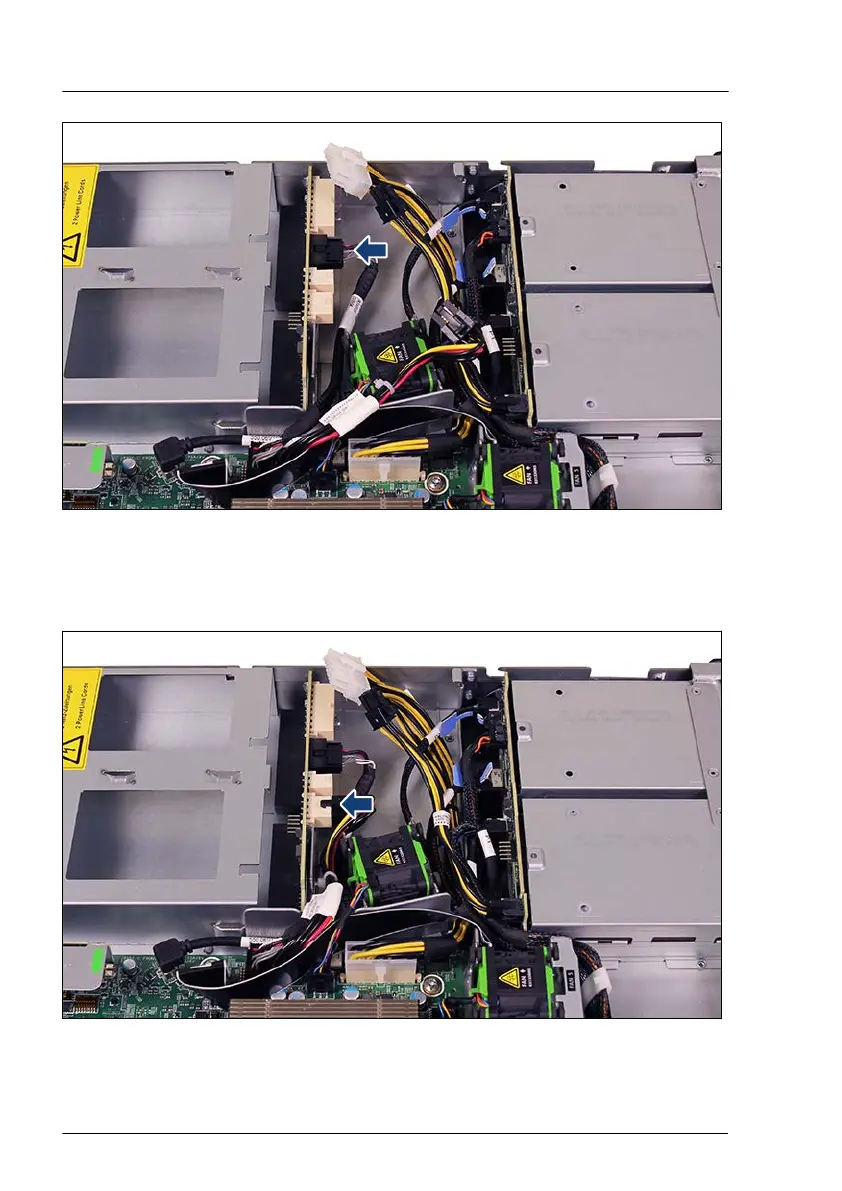

Figure 49: Connecting cables (A)

▶

Connect the power cable that is coming from connector "P30" on the system

board to the power distribution board.

Figure 50: Connecting cables (B)

Power supply unit (PSU)

116 Upgrade and Maintenance Manual RX1330 M5
