Fujitsu PRIMERGY RX1330 M5 User Manual

▶
Connect the power cable that is coming from connector "PWR2" on the
system board to the power distribution board.

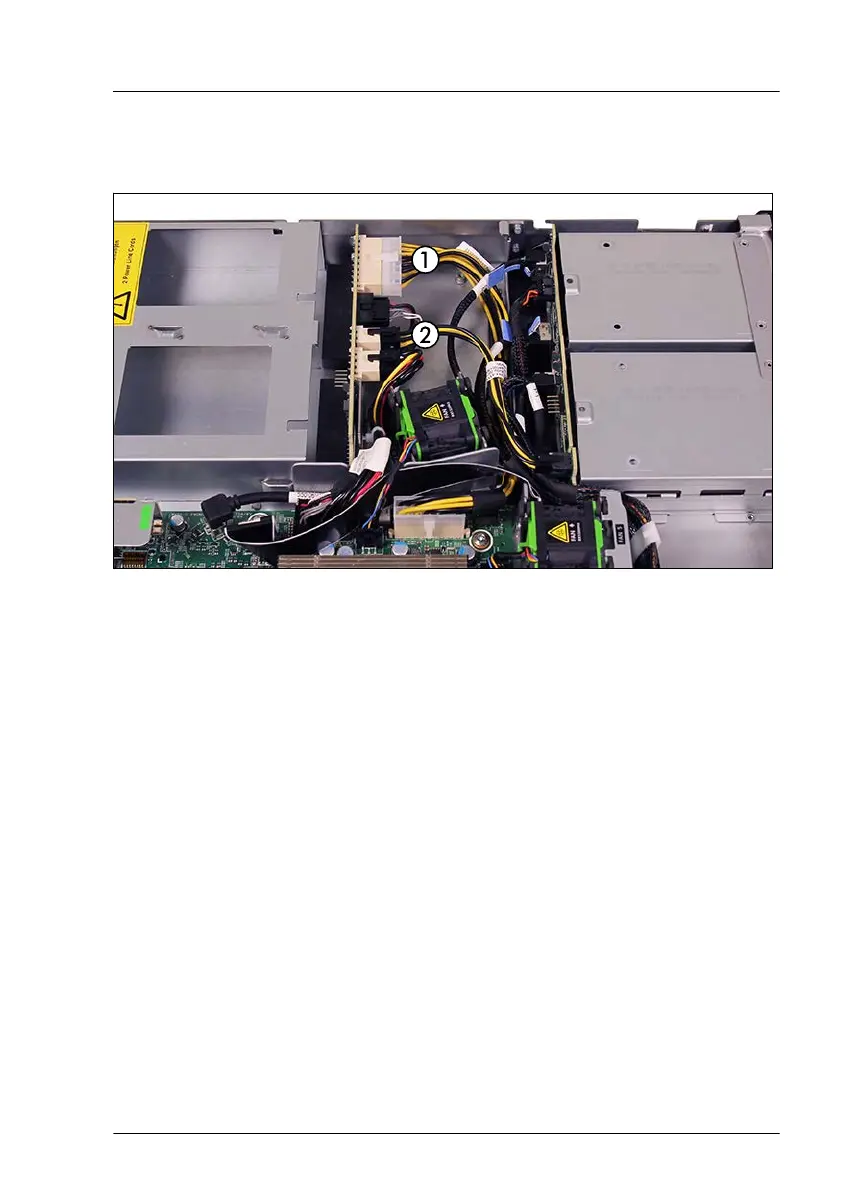

Figure 51: Connecting cables (C)
▶
Connect the power cable that is coming from connector "PWR1" on the
system board to the power distribution board (1).
▶
Connect the power cable that is coming from the HDD backplane to the
power distribution board (2).
▶
Install all PSUs, see "Installing a hot-plug PSU" on page 102
.
Concluding steps
▶
"Reassembling" on page 53
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
▶
"Resuming BitLocker functionality" on page 86.
Power supply unit (PSU)
RX1330 M5 Upgrade and Maintenance Manual 117

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
