Fujitsu PRIMERGY RX1330 M5 User Manual

Preliminary steps
▶
"Locating the defective server" on page 43
.
▶
If applicable, "Removing the front cover with lock" on page 45.
▶
"Shutting down the server" on page 46.
▶
"Connecting the power cord" on page 57.
▶
"Getting access to the component" on page 49.
▶
Release all HDD/SSD modules and pull them out a few centimeters, see
"Removing a 2.5-inch HDD/SSD module" on page 142.
CAUTION
The HDD/SSD modules need not to be removed.
▶
If you want to remove them nevertheless, check if all HDD/SSD
modules are uniquely identified so that you can reinsert them
into their original bays.
▶
Release all dummy modules and pull them out a few centimeters, see
"Removing a 2.5-inch HDD/SSD module" on page 142.
Removing the left side 4x 2.5-inch HDD backplane

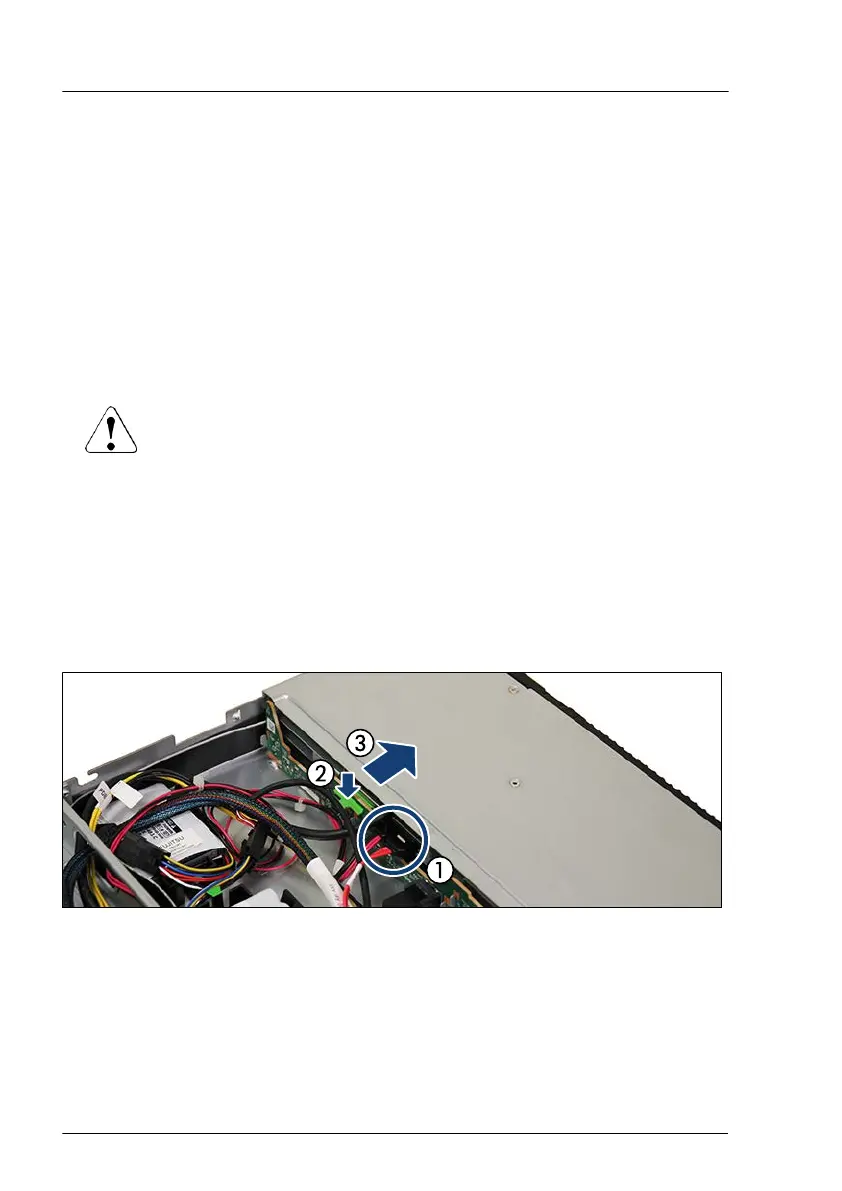

Figure 75: Releasing the ODD
▶
If applicable, disconnect the ODD cables (1).
▶
If applicable, press the ODD latch downward (2) until it disengages and
push the ODD somewhat in direction of the front side (3).
Hard disk drive (HDD) / solid state disk (SSD)
146 Upgrade and Maintenance Manual RX1330 M5

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
