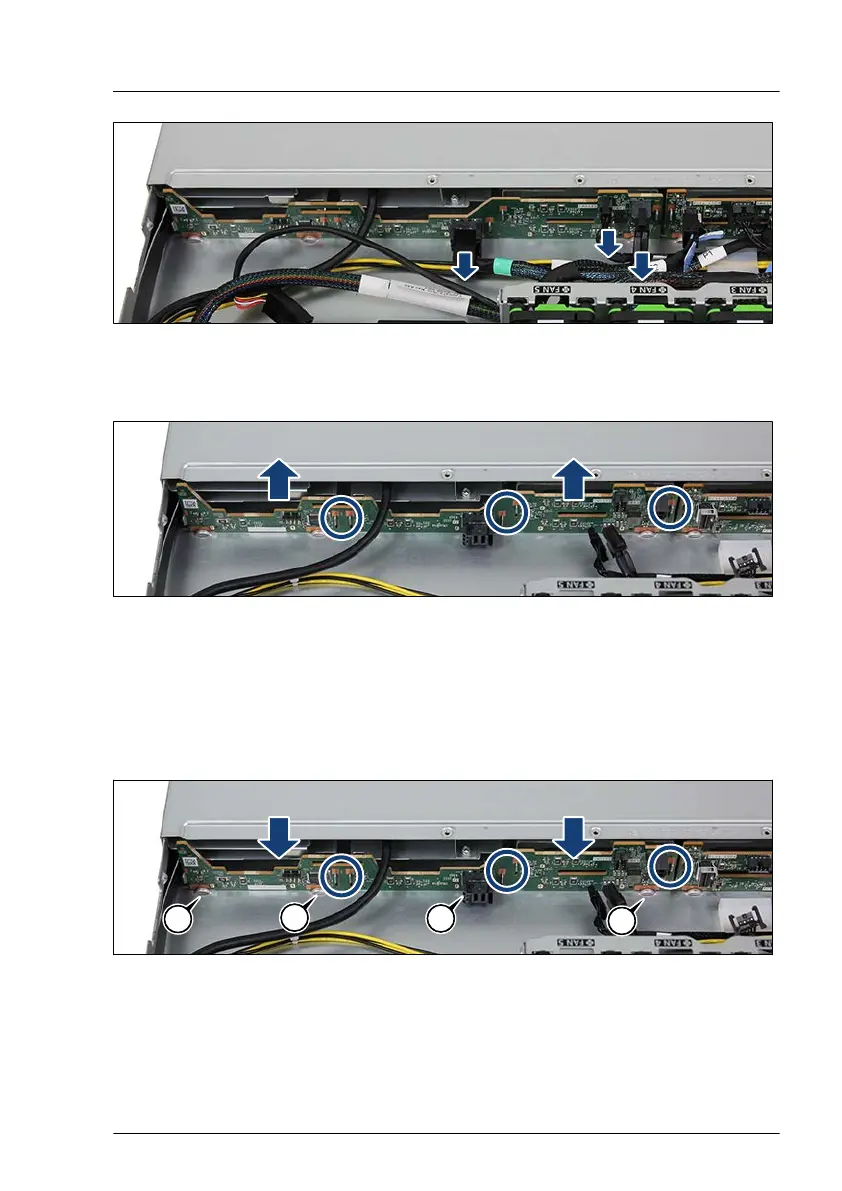

Figure 76: Disconnecting the cables
â–¶
Disconnect all cables from the HDD backplane.
Figure 77: Removing the 4x 2.5-inch HDD backplane
â–¶
Pull the HDD backplane upward until the five hooks (see circels) disengage.
â–¶
T
ake out the HDD backplane.
Installing the new left side 4x 2.5-inch HDD backplane
A
A
A
A
Figure 78: Installing the 4x 2.5-inch HDD backplane
â–¶
Position the HDD backplane on the five hooks (see circles).
Hard disk drive (HDD) / solid state disk (SSD)
RX1330 M5 Upgrade and Maintenance Manual 147
