Push the HDD backplane downward. Make sure that the HDD backplane fits
behind the guide pins (A).
CAUTION
â–¶
Ensure that none of the cables are strained or damaged!

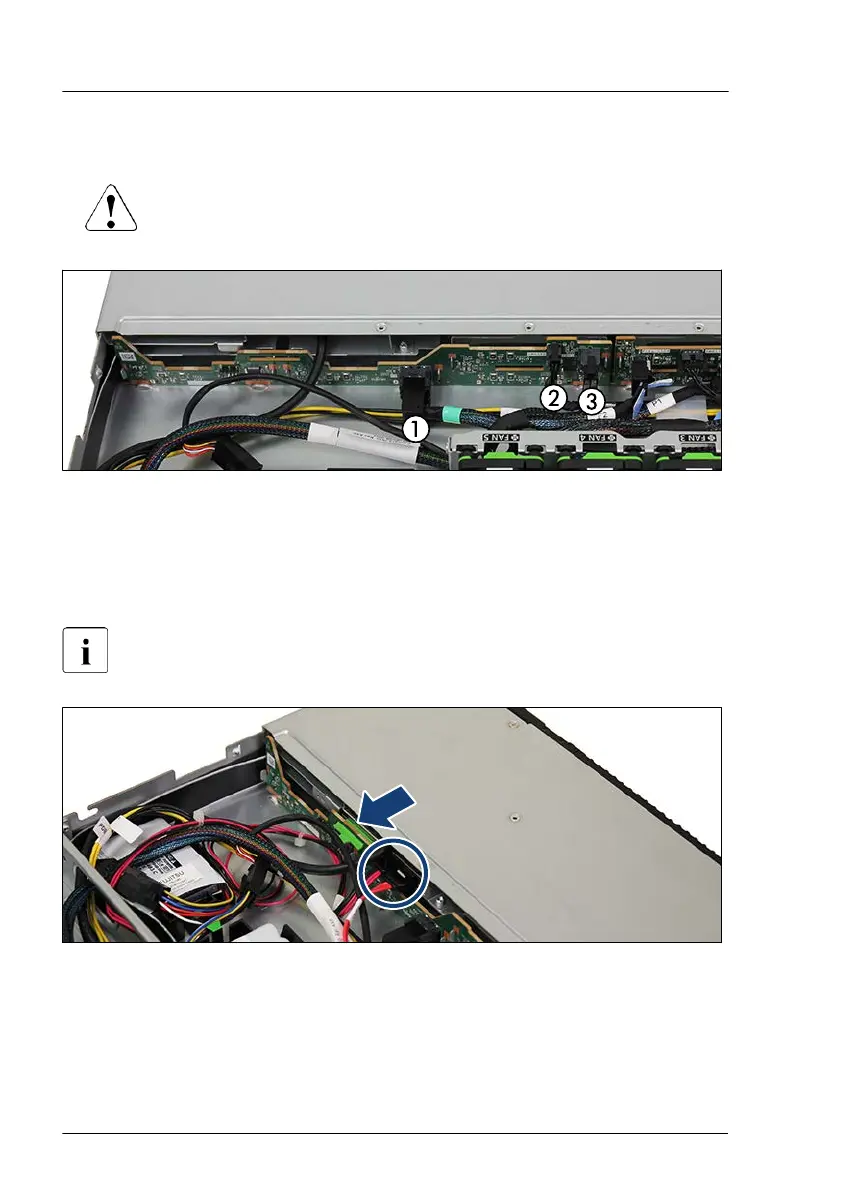

Figure 79: Connecting the cables
1 SAS cable
2
OOB cable
3
Power cable
â–¶
Connect the cables to the HDD backplane.
For the cable plan, see "Appendix B" on page 363
.
Figure 80: Installing the ODD
â–¶
If applicable, push the ODD into its bay until the ODD latch engages in the
HDD backplane.
â–¶
If applicable, connect the ODD cables to the ODD (see circle).
Hard disk drive (HDD) / solid state disk (SSD)
148 Upgrade and Maintenance Manual RX1330 M5
