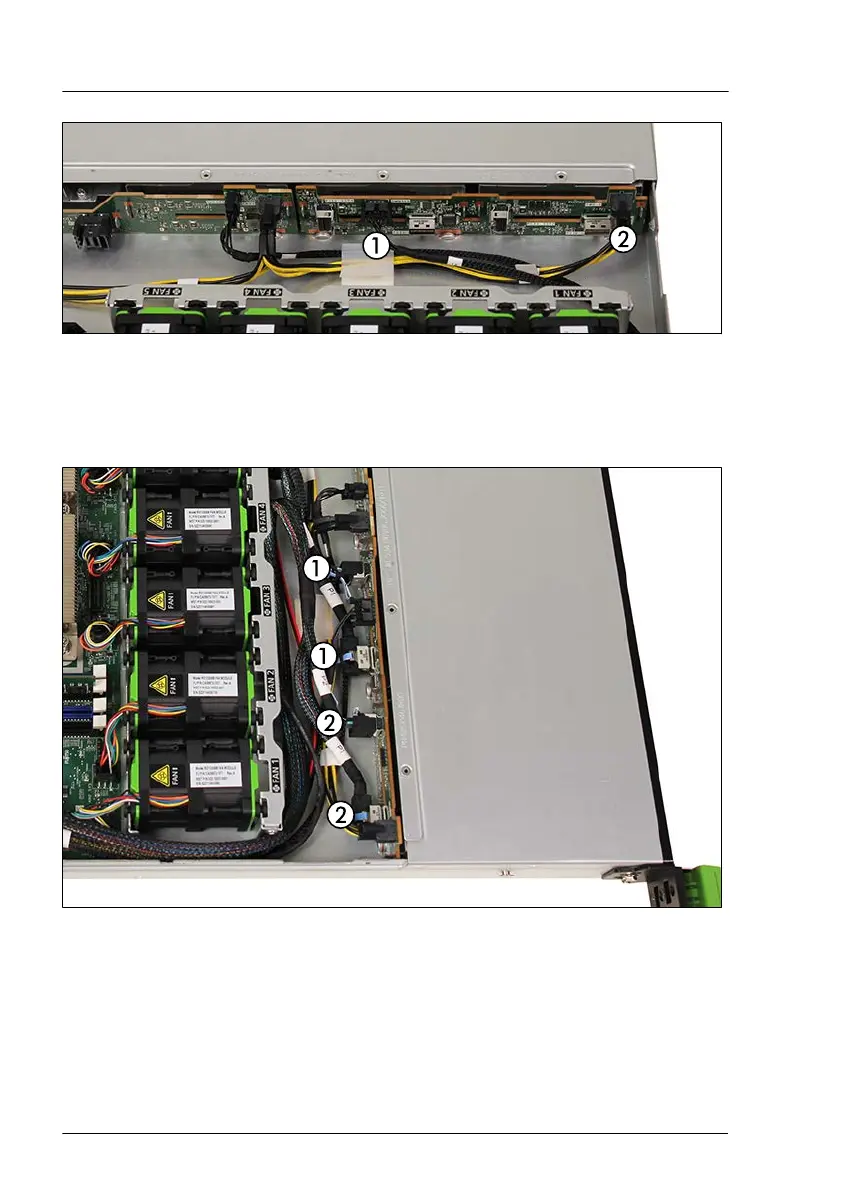

Figure 84: Connecting the power cable and OOB cable (NVMe variant)
1
OOB cable
2
Power cable
â–¶
Connect the power cable and the OOB cable to the HDD backplane.
Figure 85: Connecting the NVMe cables (NVMe variant)
â–¶
Connect the NVMe cables to the HDD backplane:
Hard disk drive (HDD) / solid state disk (SSD)
152
Upgrade and Maintenance Manual
RX1330 M5
151
153
