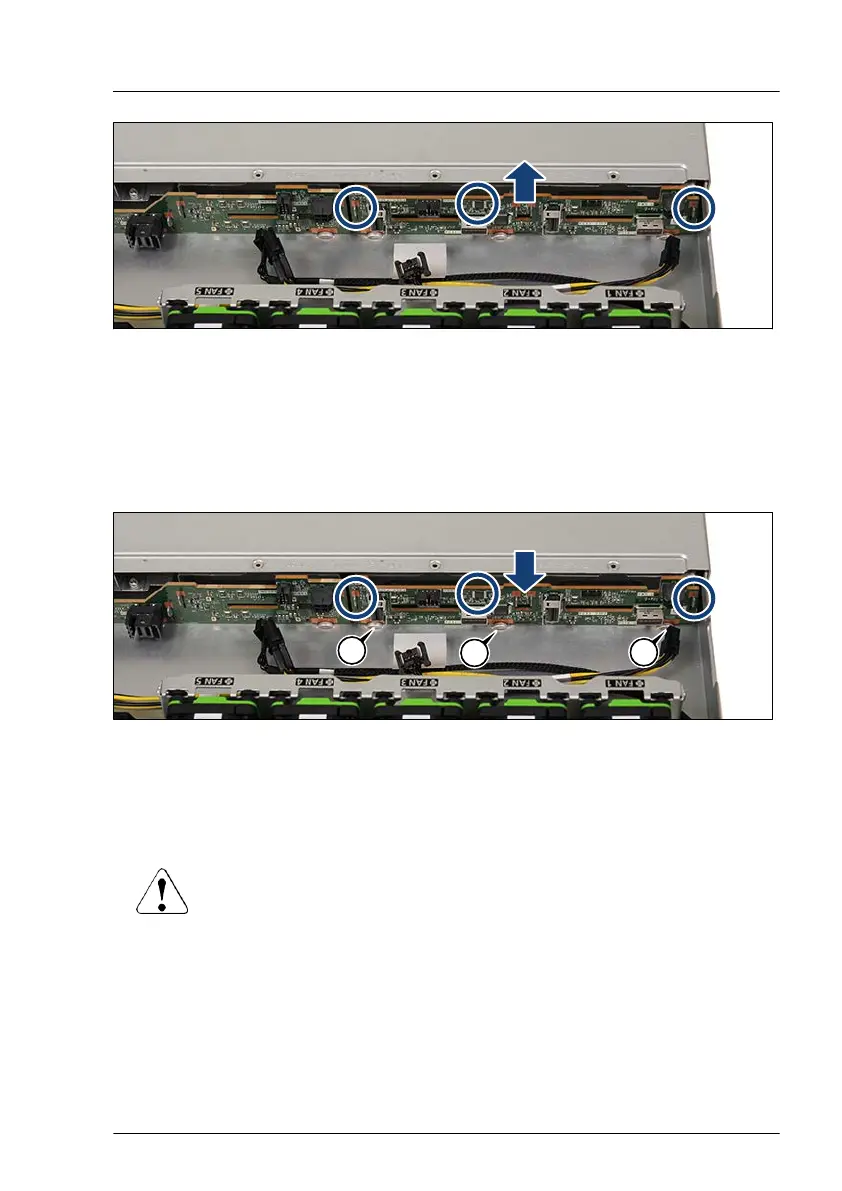

Figure 82: Removing the 4x 2.5-inch HDD backplane (NVMe variant)
▶
Pull the HDD backplane upward until the four hooks (see circles) disengage.
▶
T
ake out the HDD backplane.
Installing the new right side 4x 2.5-inch HDD backplane
A
A
A
Figure 83: Installing the 4x 2.5-inch HDD backplane (NVMe variant)
▶
Position the HDD backplane on the four hooks (see circles).
▶
Push the HDD backplane downward. Make sure that the HDD backplane fits
behind the guide pins (A).
CAUTION
▶
Ensure that none of the cables are strained or damaged!
Hard disk drive (HDD) / solid state disk (SSD)
