Release all HDD/SSD modules and pull them out a few centimeters, see
"Removing a 2.5-inch HDD/SSD module" on page 142.
CAUTION
The HDD/SSD modules need not to be removed.
▶
If you want to remove them nevertheless, check if all HDD/SSD
modules are uniquely identified so that you can reinsert them
into their original bays.
▶
Release all dummy modules and pull them out a few centimeters, see
"Removing a 2.5-inch HDD/SSD dummy module" on page
139
.
Removing the right side 4x 2.5-inch HDD backplane

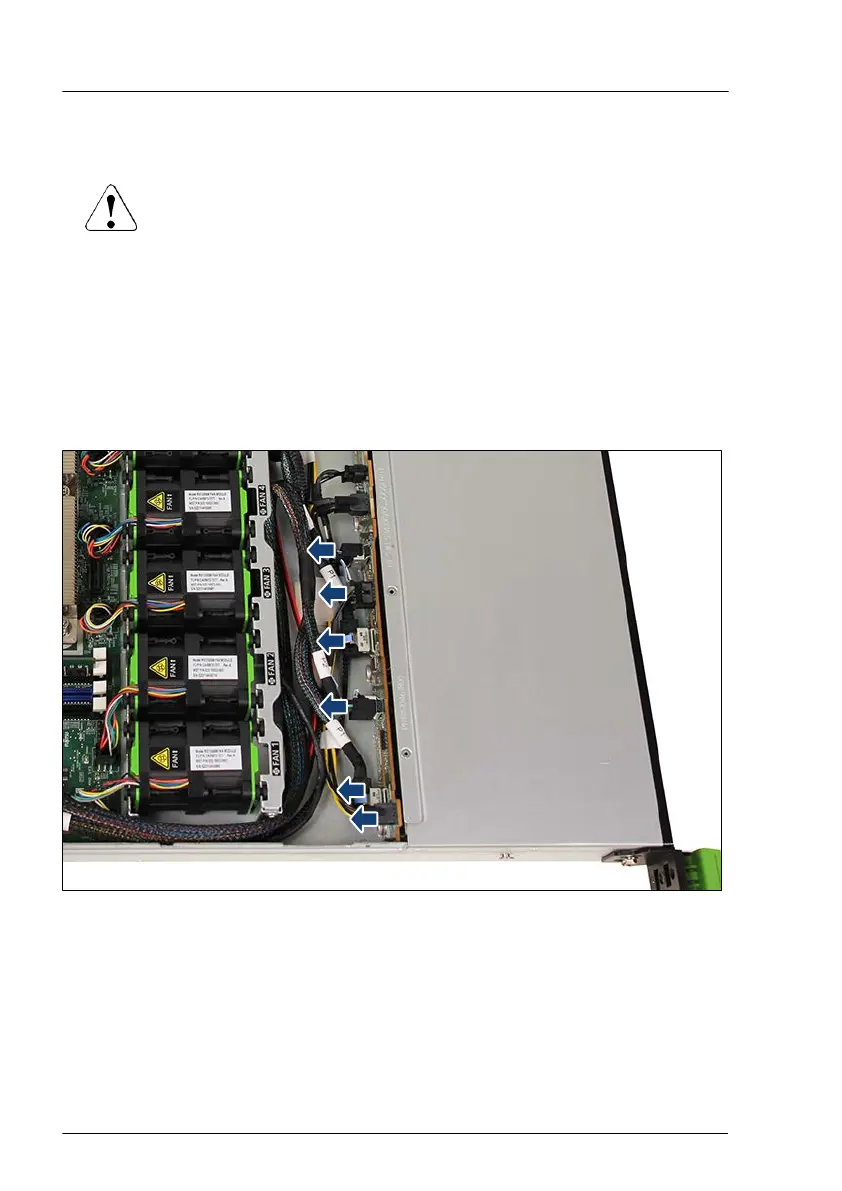

Figure 81: Disconnecting the cables (NVMe variant)
▶
Disconnect all cables from the HDD backplane.
Hard disk drive (HDD) / solid state disk (SSD)
150 Upgrade and Maintenance Manual RX1330 M5
