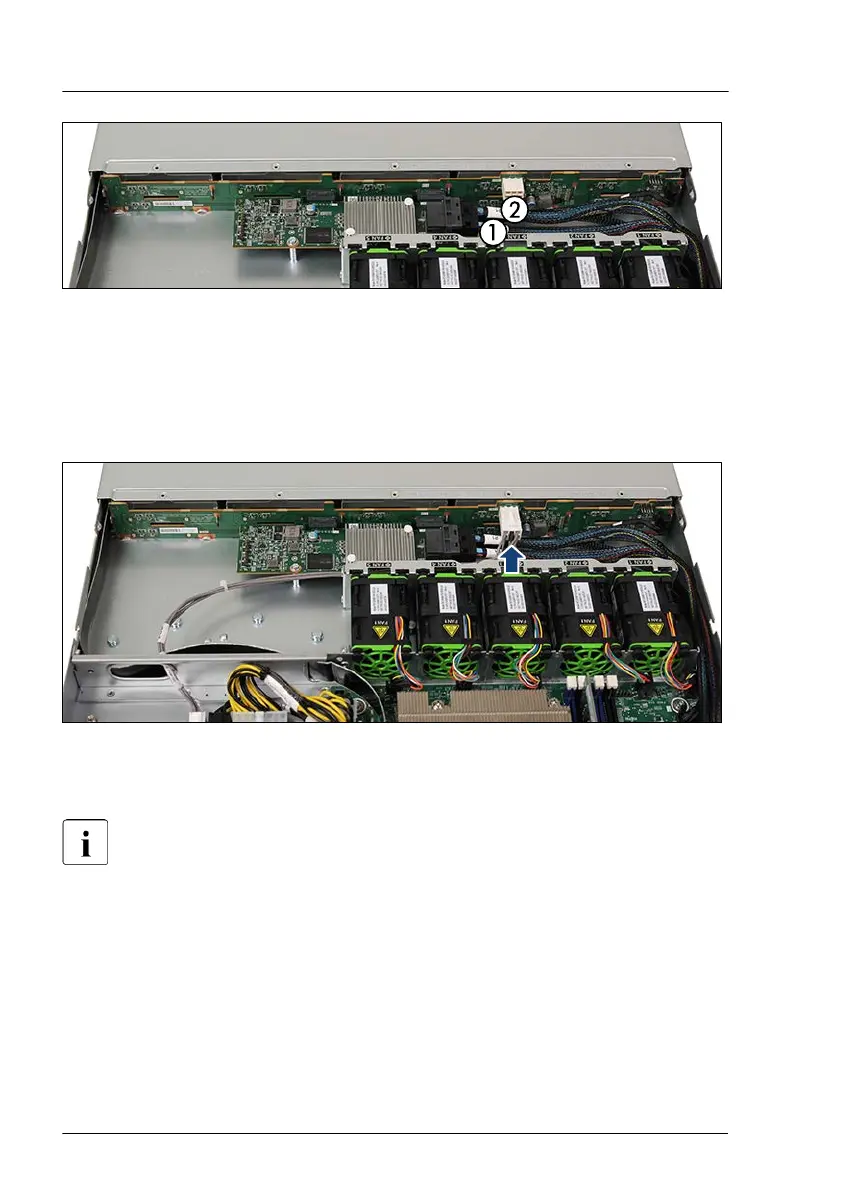

Figure 109: Connecting the cables to the SAS expander board
▶
Connect the following cables to the SAS expander board:
1 SAS cable, leading to connector “C0” on the RAID controller
2 SAS cable, leading to connector “C1” on the RAID controller
Figure 110: Connecting the power cable
▶
Connect the power cable to the HDD backplane.
For the cable plan, see "Appendix B" on page
363
.
Concluding steps
▶
"Reassembling" on page 53
.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
Hard disk drive (HDD) / solid state disk (SSD)
166 Upgrade and Maintenance Manual RX1330 M5
