Fujitsu PRIMERGY RX1330 M5 User Manual

A
A

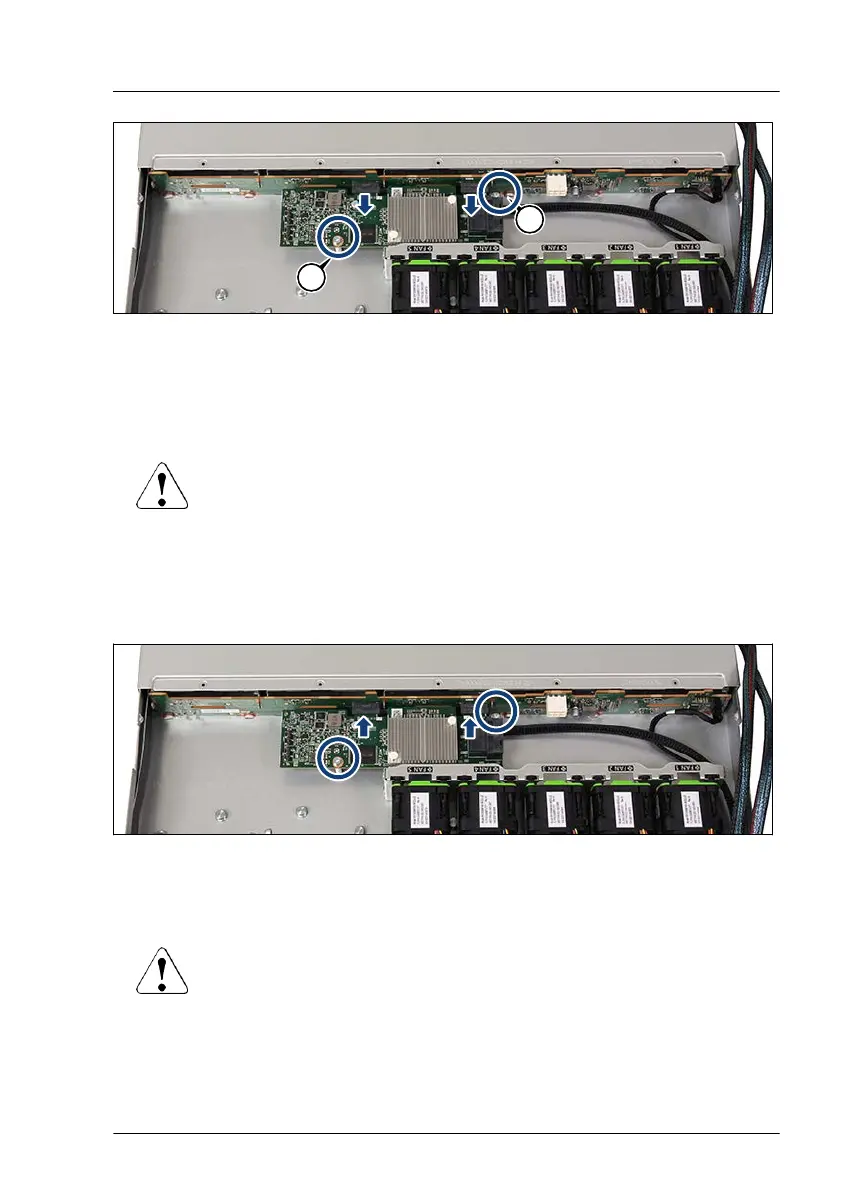

Figure 107: Removing the SAS expander board
▶
Remove the two screws (see circles).
▶
Get the SAS expander board out of the two connectors of the HDD
backplane and remove it.
CAUTION
▶
Lift up the SAS expander board while removing it in order to
prevent the components to be damaged by the stand-offs (see A
in
Figure 107) of the chassis.
Installing the new SAS expander board
Figure 108: Installing the SAS expander board
▶
Insert the SAS expander board into the two connectors of the HDD
backplane.
CAUTION
▶
Lift up the SAS expander board while inserting it in order to
prevent the components to be damaged by the stand-offs of the
chassis.
▶
Fasten the SAS expander board with two screws (see circles).
Hard disk drive (HDD) / solid state disk (SSD)
RX1330 M5 Upgrade and Maintenance Manual 165

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
