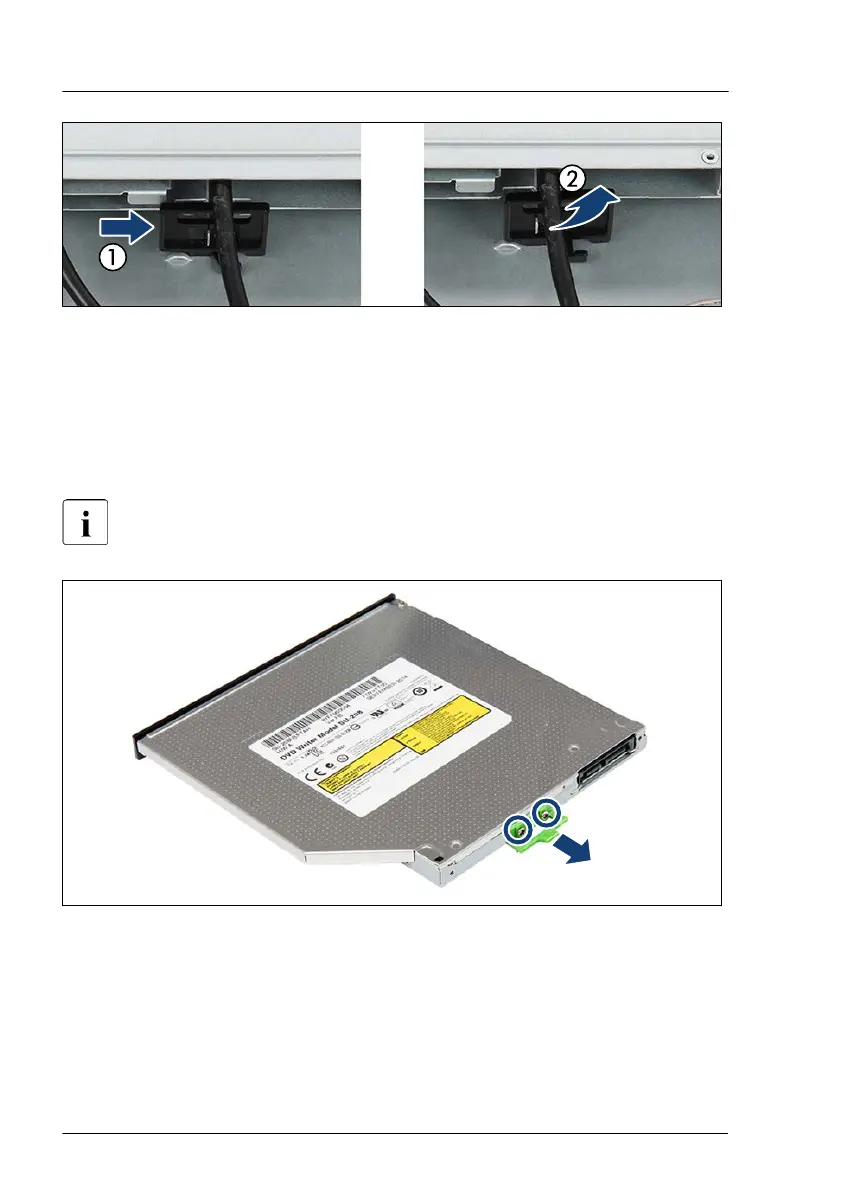

Figure 111: Removing the ODD lock
▶
Push the ODD lock in direction of the arrow (1).
▶
Remove the ODD lock (2).
Changing direction of ODD latch
The locking mechanism of the HDD backplane is reverse to the ODD
lock.
Figure 112: Removing the ODD latch from the ODD
▶
Remove the two screws (see circles).
▶
Remove the ODD latch.
Hard disk drive (HDD) / solid state disk (SSD)
168 Upgrade and Maintenance Manual RX1330 M5
