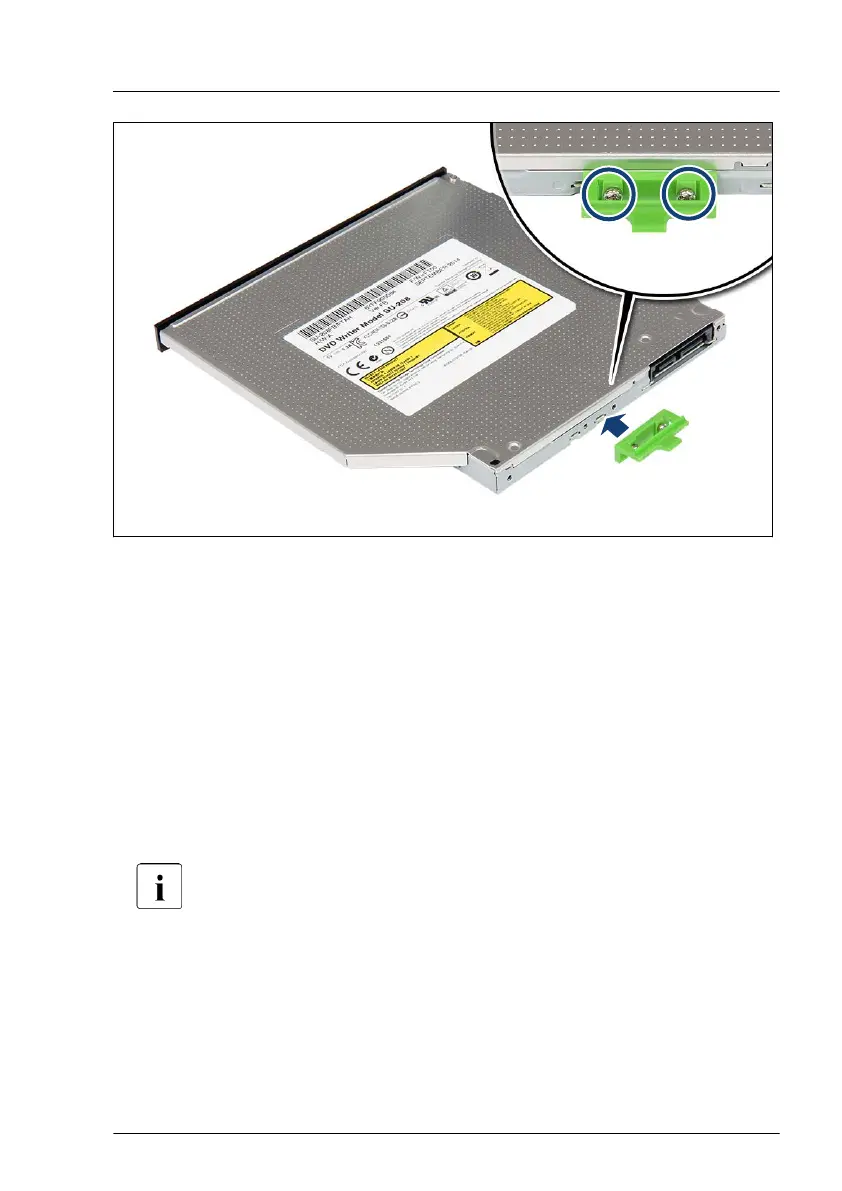

Figure 113: Installing the ODD latch on the ODD
▶
Fasten the ODD latch with two screws to the rear side of the ODD (see
circles).
Installing the second HDD backplane
▶
Install the second HDD backplane, see "Installing the new left side 4x 2.5-
inch HDD backplane" on page
147
.
▶
If applicable, install a dual-channel RAID controller, see "Installing an
expansion card" on page 195.
▶
Connect all cables.
For the cable plans, see "Appendix B" on page 363
.
▶
If an ODD has been removed, install the ODD again, see "Installing the
ODD" on page 248
.
