Fujitsu PRIMERGY RX1330 M5 User Manual

▶
"Disconnecting the power cord" on page 47
.
▶
"Getting access to the component" on page 49.
Removing the dummy cover

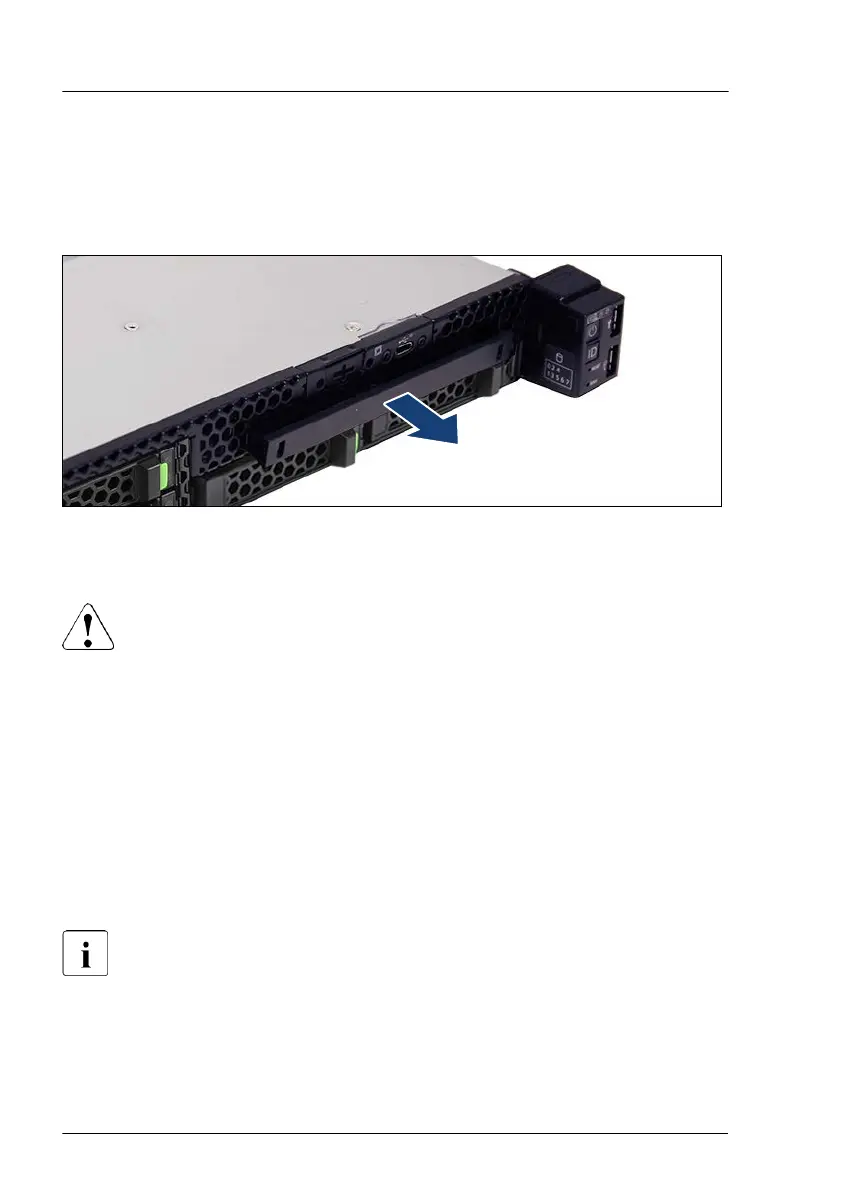

Figure 188: Removing the dummy cover
▶
Pull the dummy cover out of the bay.
CAUTION
▶
Keep the dummy cover for future use.
▶
If you remove the accessible drive again and do not replace it with
a new one, the dummy cover must be reinstalled to comply with
EMC regulations and to satisfy cooling requirements and fire
protection measures.
Installing the ODD
▶
If no ODD has been installed before:
▶
Remove the two screws and take the ODD latch from the chassis (see
Figure 187).
There are two directions of installing the ODD latch on the ODD.
In the 2.5-inch HDD configuration with only one HDD backplane, the
ODD latch engages in the ODD lock. In this configuration the ODD latch
is installed in reverse direction.
Accessible drives
248 Upgrade and Maintenance Manual RX1330 M5

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
