Fujitsu PRIMERGY RX1330 M5 User Manual

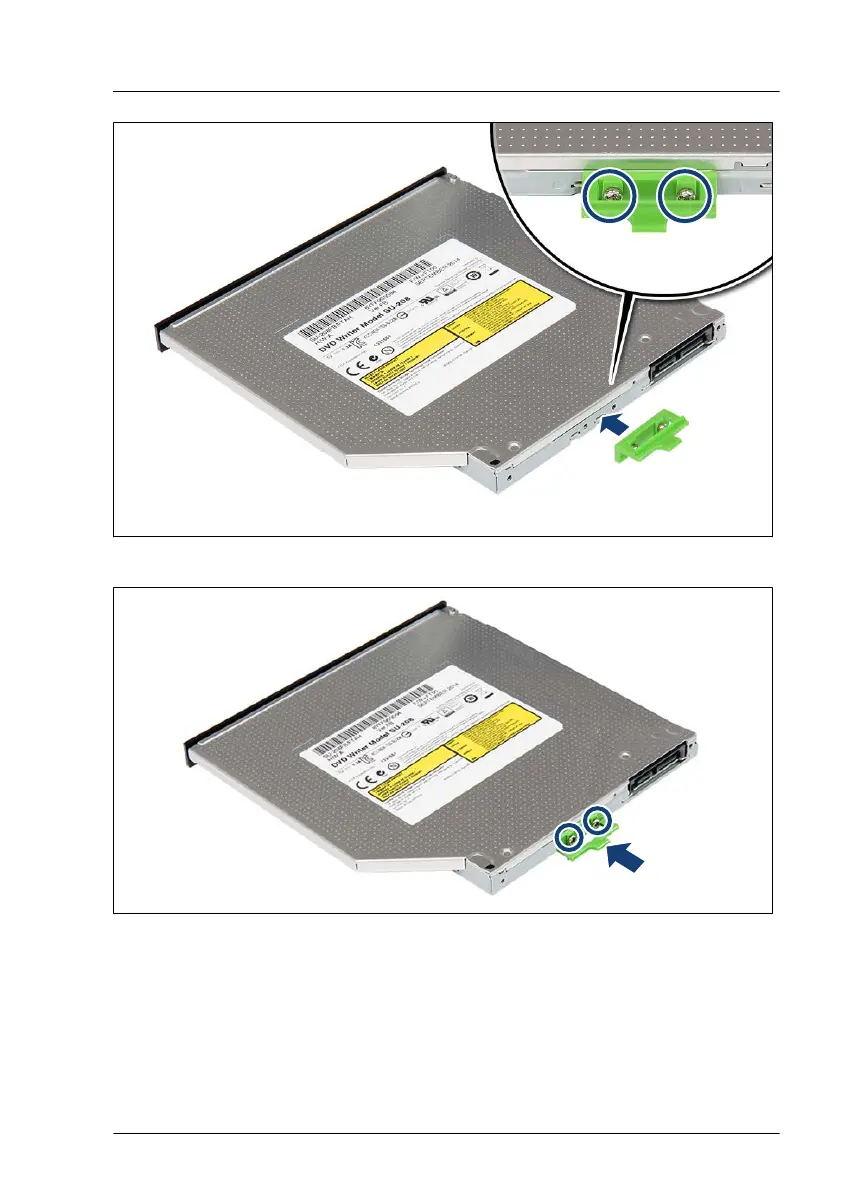

Figure 189: Installing the ODD latch on the ODD
Figure 190: Installing the ODD latch on the ODD (for ODD lock)
▶
Fasten the ODD latch with two screws to the rear side of the ODD (see
circles).
Accessible drives
RX1330 M5 Upgrade and Maintenance Manual 249

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
