Fujitsu PRIMERGY RX1330 M5 User Manual

Installing additional HDD/SSD modules
In configuration with only one 4x 2.5-inch HDD backplane dummy locks
are installed to make it impossible to equip the bays with no HDD
backplane behind.

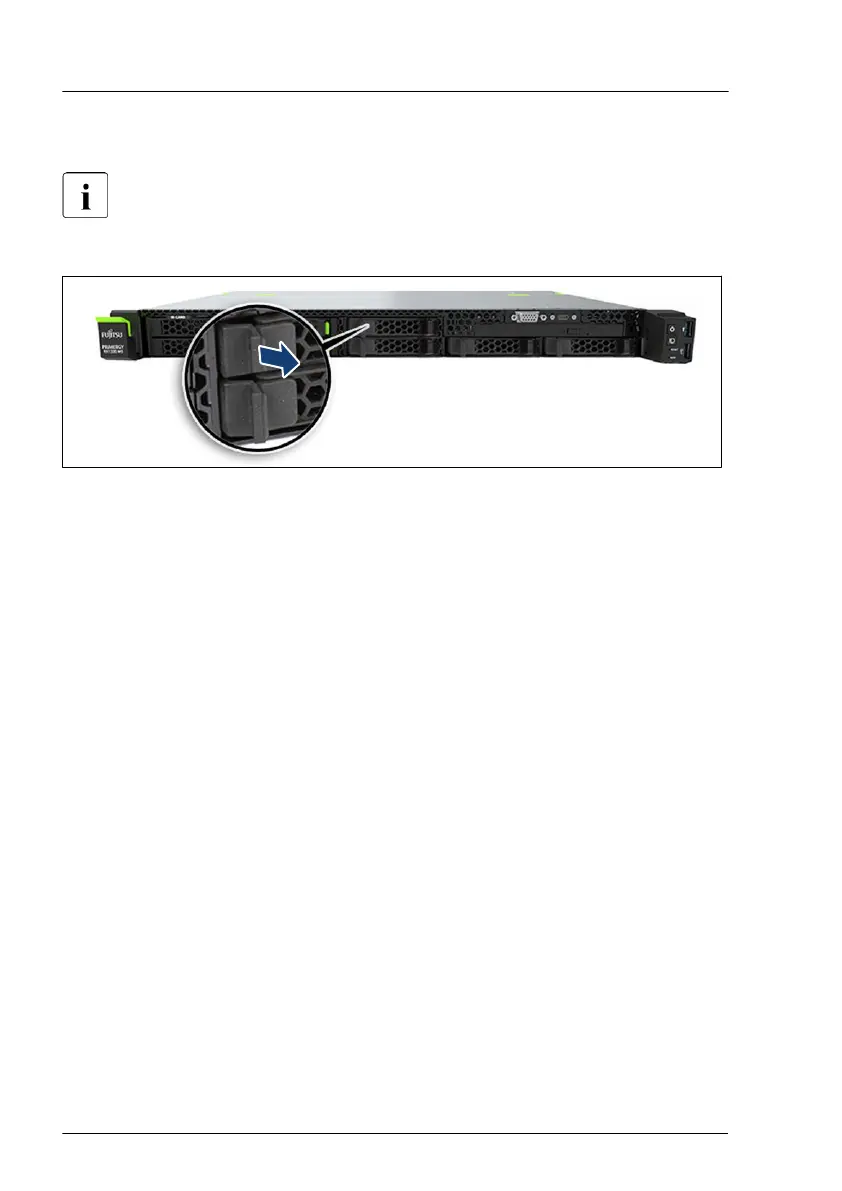

Figure 114: Removing the dummy lock
▶
Only valid after upgrading the server with the second HDD backplane: pull
the dummy lock out of the dummy cover. Please be aware that the dummy
lock can be damaged.
▶
Insert additional HDD/SSD modules, see "Installing 2.5-inch HDD / SSD /
PCIe SSD modules" on page
138.
Concluding steps
▶
"Reassembling" on page 53.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
▶
Update the system information of your server using the Chassis ID Prom
Tool, see "Installing the front cover with lock" on page 61. Select the
corresponding system name.
▶
"Performing a RAID array rebuild" on page 87.
Hard disk drive (HDD) / solid state disk (SSD)
170 Upgrade and Maintenance Manual RX1330 M5

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
