"Locating the defective component" on page 44
.

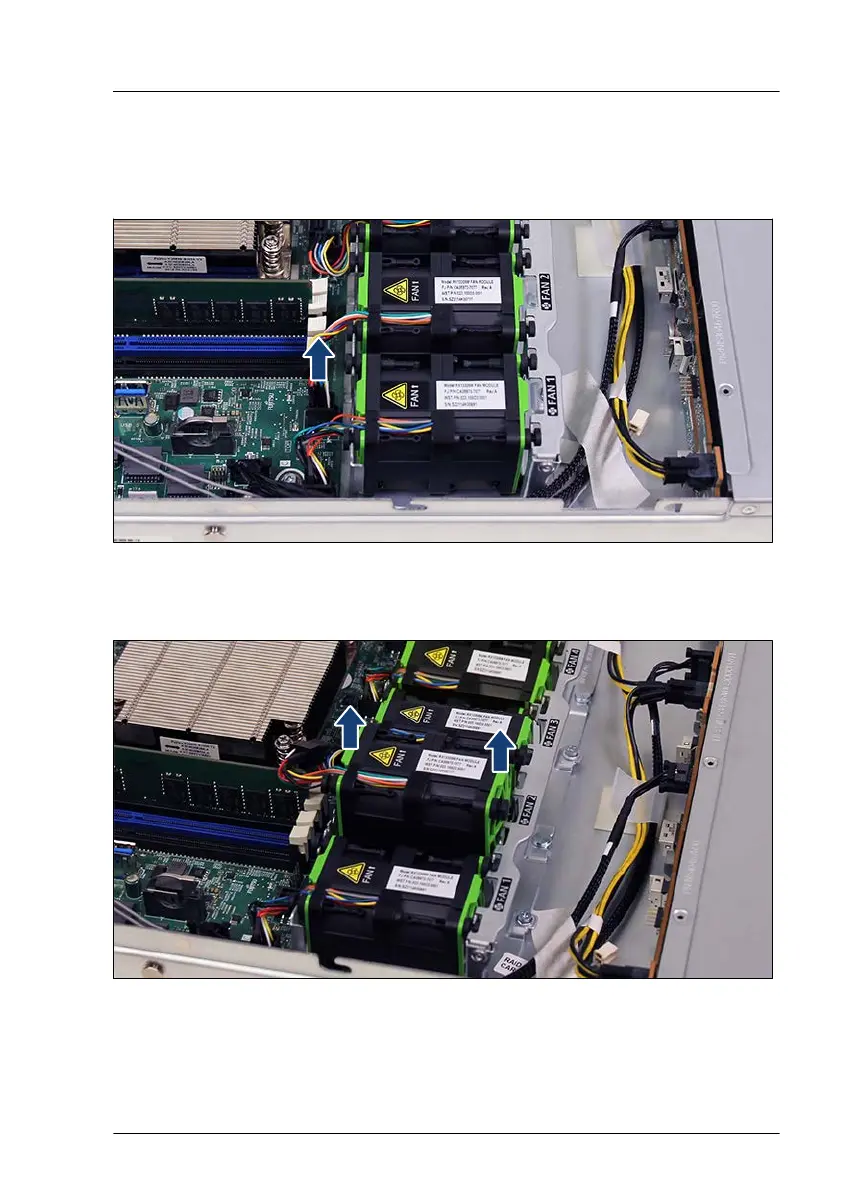

Removing the defective fan module
Figure 1
18: Disconnecting the fan cable
â–¶
Disconnect the fan cable of the corresponding fan module.
Figure 1
19: Removing the fan module
â–¶
Pull out the fan module upward using the green touch points.
Fans
RX1330 M5
Upgrade and Maintenance Manual
175
174
176
