Fujitsu PRIMERGY RX1330 M5 User Manual

Installing the new fan module

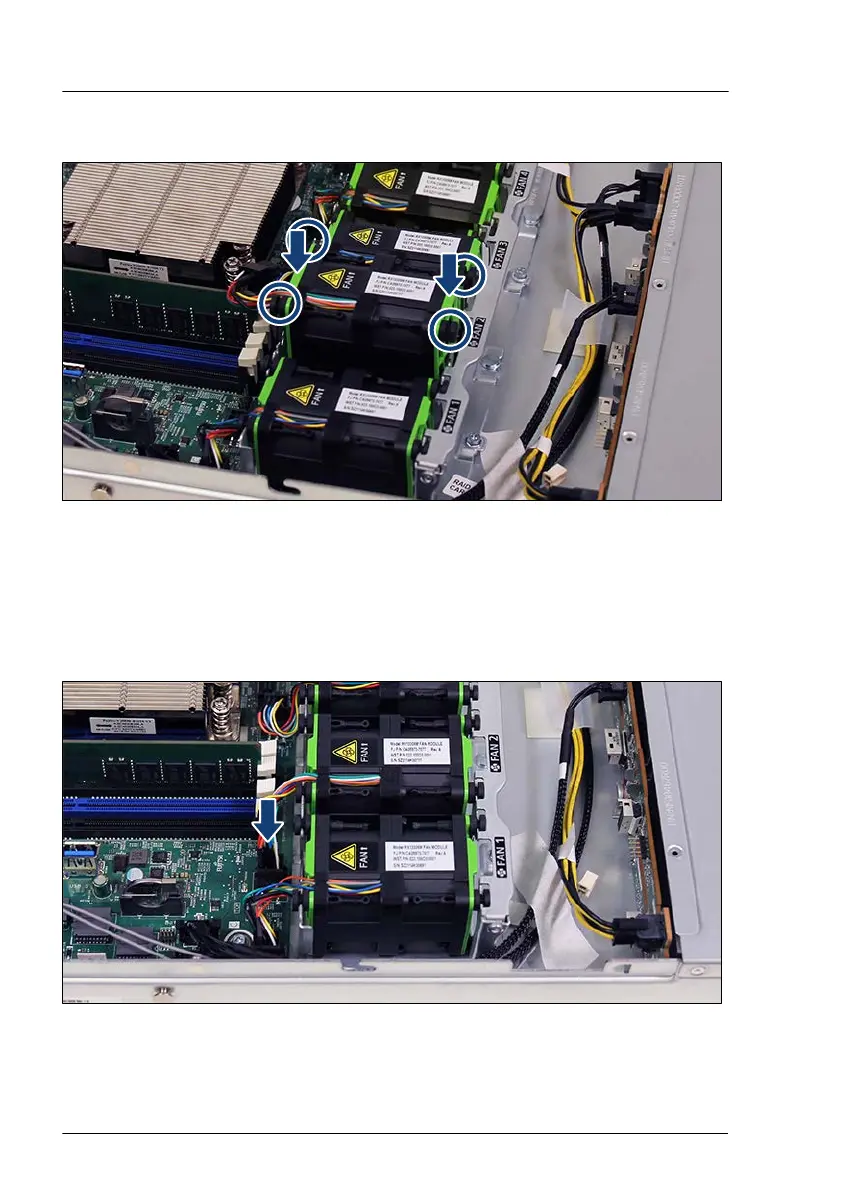

Figure 120: Installing the fan module
▶
Insert the fan module in the fan bay. Notice the right position of the rubber
pins (see circles).
▶
Press down the green touch points to ensure that the fan module is in right
position.
Figure 121: Connecting the fan cable
▶
Connect the fan cable.
Fans
176 Upgrade and Maintenance Manual RX1330 M5

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
