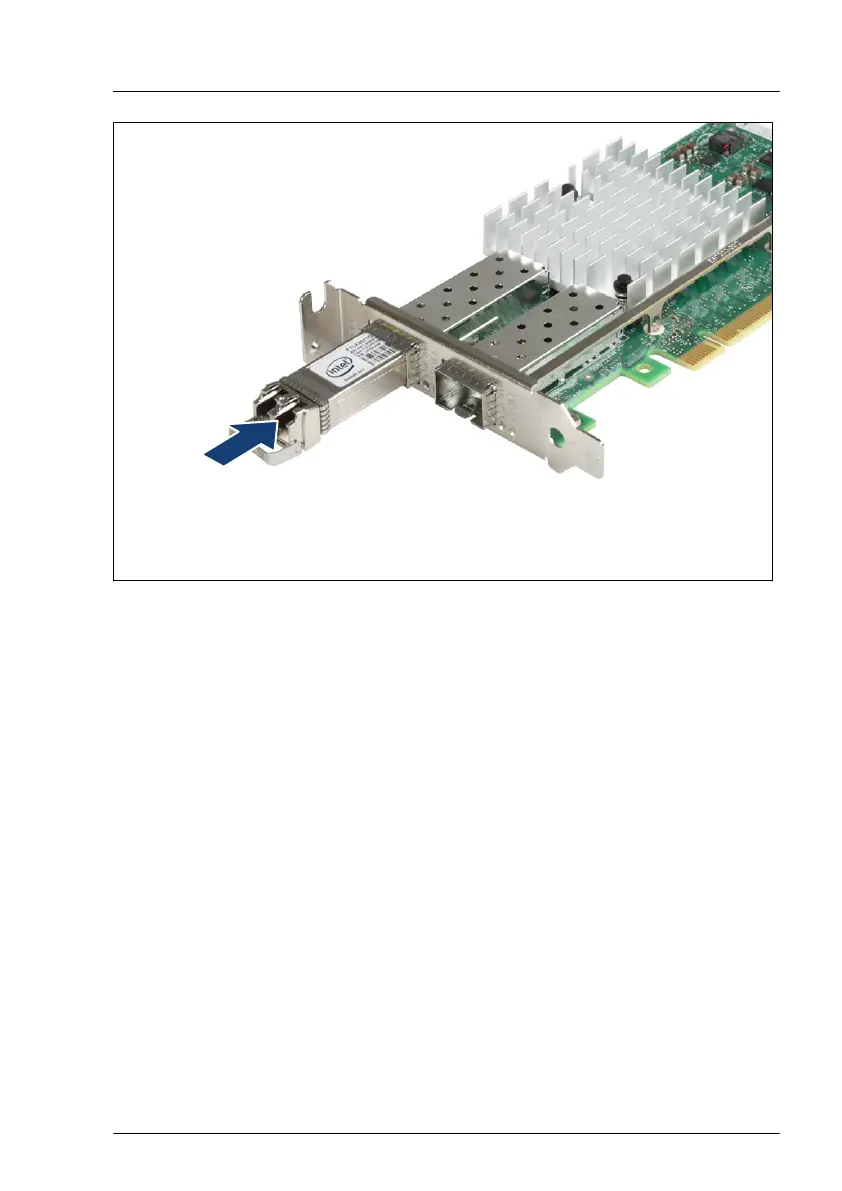

Figure 129: Inserting the SFP+ transceiver module

▶

Insert and slide the SFP+ transceiver module into the socket connector as

far as it will go.

Expansion cards and backup units

RX1330 M5 Upgrade and Maintenance Manual 187
