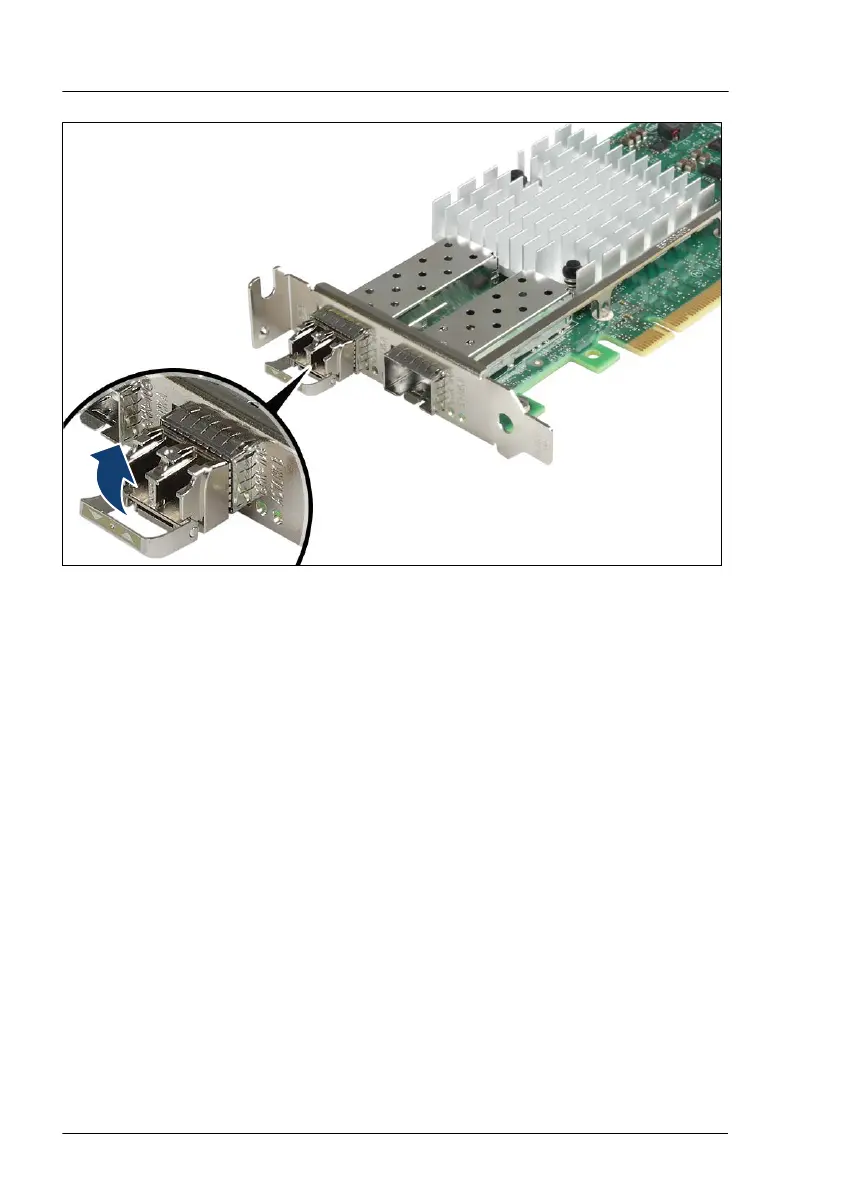

Figure 130: Latching the locking bail

▶

Carefully fold up and latch the locking bail.

Expansion cards and backup units

188 Upgrade and Maintenance Manual RX1330 M5
