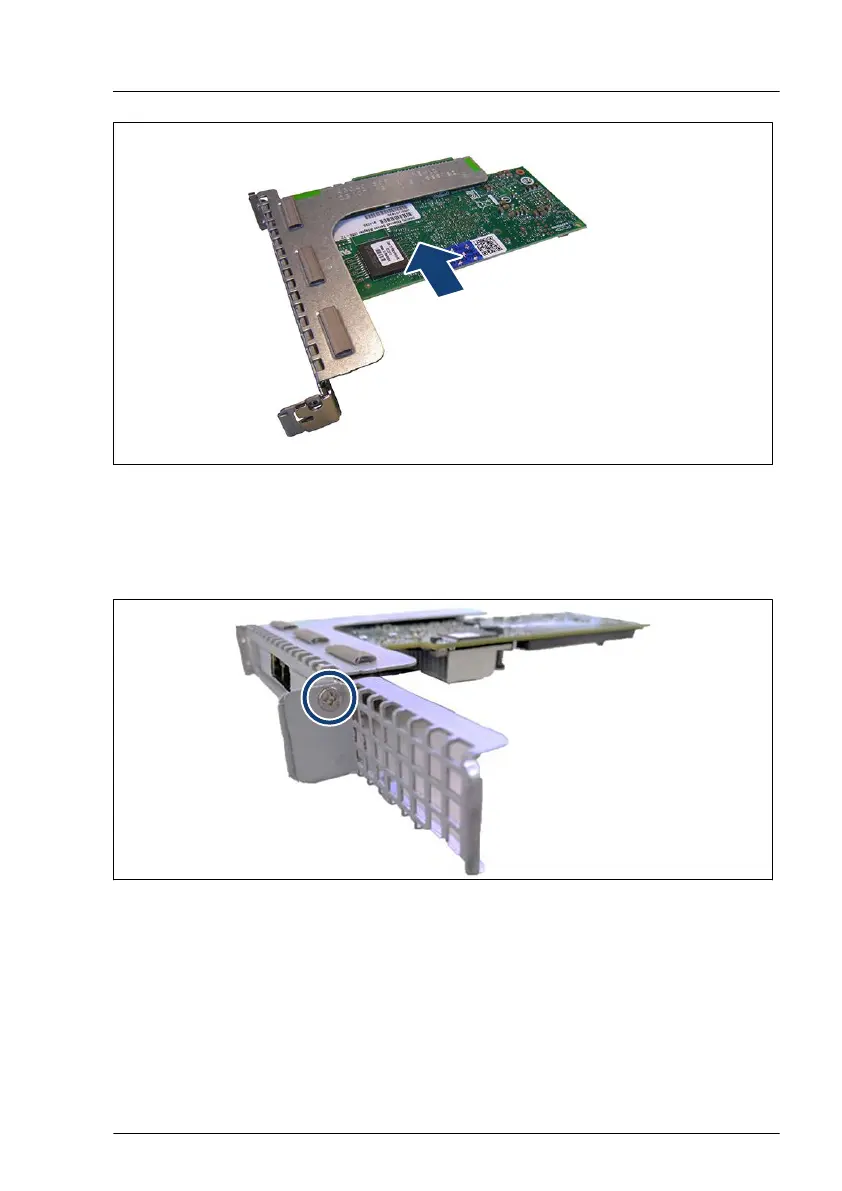

Figure 153: Installing the expansion card
▶
Remove the slot cover.
▶
Install the expansion card.
Figure 154: Installing the full height extension
▶
Fasten the full-height extension with one screw (see circle) to the full height
riser module.
▶
Install the full height riser module in the chassis.
Expansion cards and backup units
RX1330 M5 Upgrade and Maintenance Manual 209
