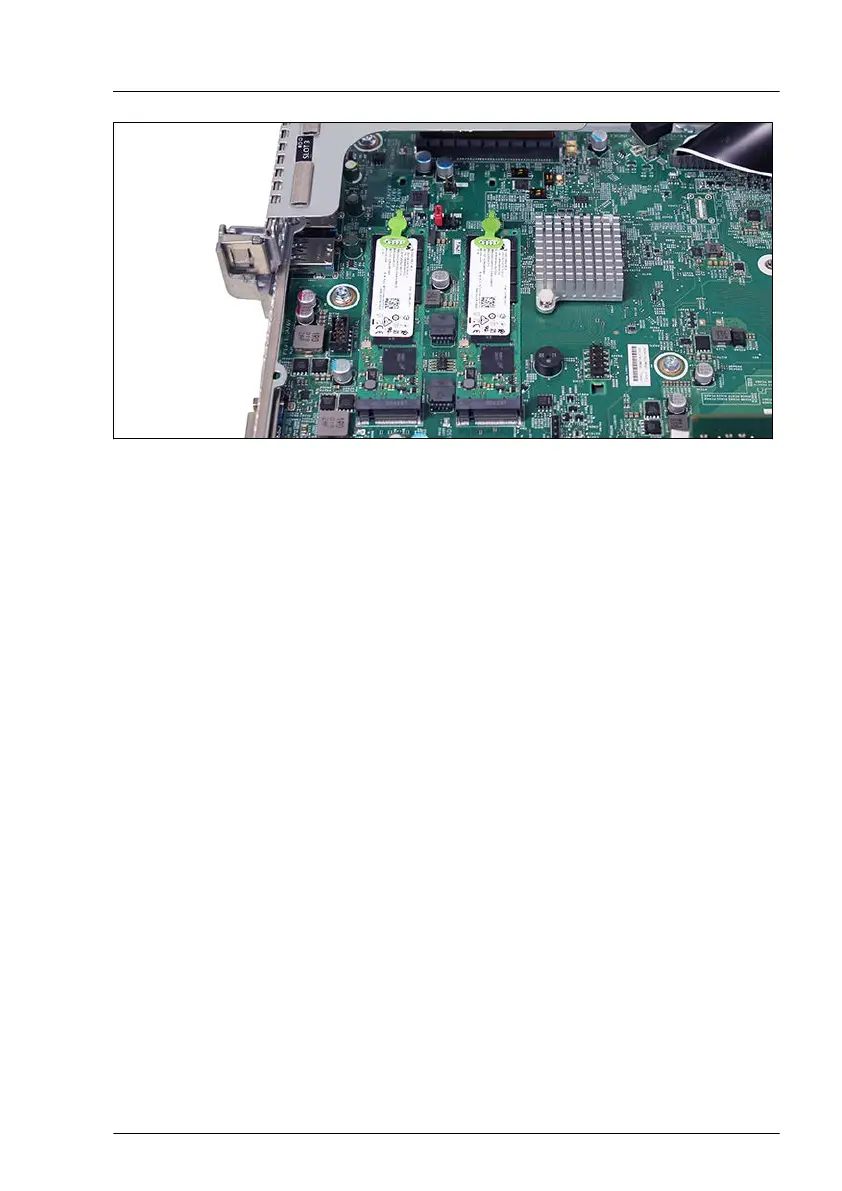

Figure 251: Installing the second M.2 SSD
▶
If applicable, install the second M.2 SSD in the same way.
Concluding steps
▶
Install the riser module 2 and riser module 3, see "Installing a riser module"
on page 64
.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
Software configuration
In order to install the ESXi to the M.2 SSD, the VMware ESXi installer CD is
required. To obtain the ESXi installer CD by purchasing the OEM Media Kit, or
downloading the ESXi Custom Image ISO file from the VMware website and
burn the image to the CD.
https://www.vmware.com/go/download-vsphere
Install the ESXi to the M.2 SSD by following the steps below:
▶
Disconnect all storage devices from the server beside the M.2 SSD.
▶
Power on the server. Once the server has been started, then enter the BIOS
setup menu and select the DVD drive as primary boot device.
System board and components
RX1330 M5 Upgrade and Maintenance Manual 315
