Chapter 3 - Setup Instructions 3-51
3-7-5-3 UP-D25MD - Printer Settings (cont’d)
3.) Select the
GRAPHICS page. From the “Color Adjust” pop-up menu select:
a.) Color Balance: Cyan = 0; Magenta = 0; Yellow = 0
b.) Gray Balance: X =50, Y=50
c.) Color Correction: set Printer Hardware Color Correction
d.) Lightness: Sharpness = 7 or 8; Dark = 0; Gamma = 0; Light = 0

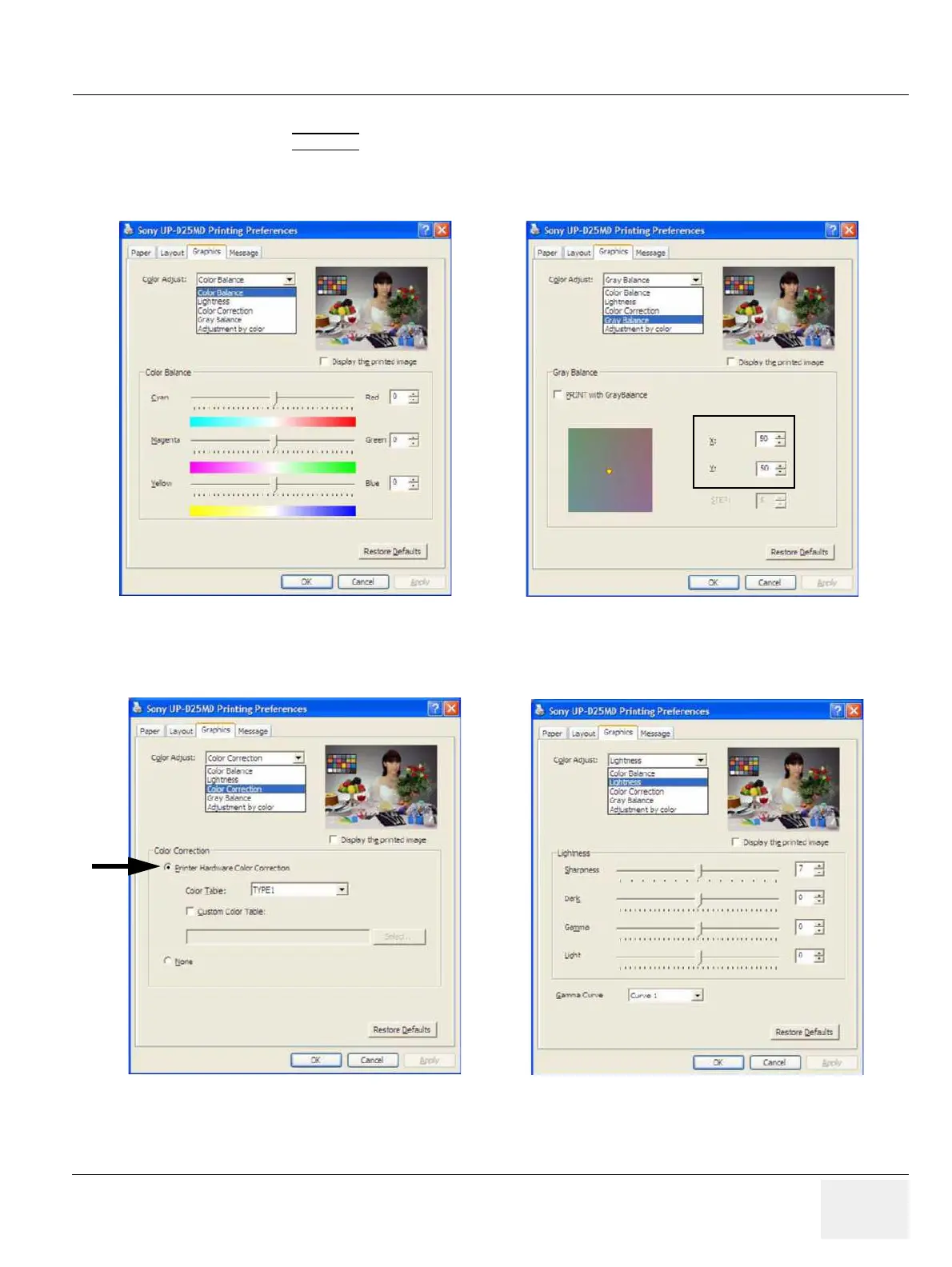

Figure 3-52 Graphics page (Color Balance + Gray Balance)
Figure 3-53 Graphics page (Color Correction + Lightness)
