GE Voluson P6 - Section 8-32 Replacement of the BF64; 8-32-1 Tools; 8-32-2 Preparations; 8-32-3 Removal Procedure

GE HEALTHCAREDRAFT VOLUSON® P8 / VOLUSON® P6
DIRECTION 5459672-100, R
EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-71
Section 8-32
Replacement of the BF64
Manpower
One person, 30 minutes
8-32-1 Tools
Philips screwdriver, Allen Wrench
8-32-2 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
2.) Remove the rear cover as described in Section 8-13 on page 8-29, step 5 and step 6.
8-32-3 Removal Procedure
1.) Pull the BF/PIR out of the Nest Frame

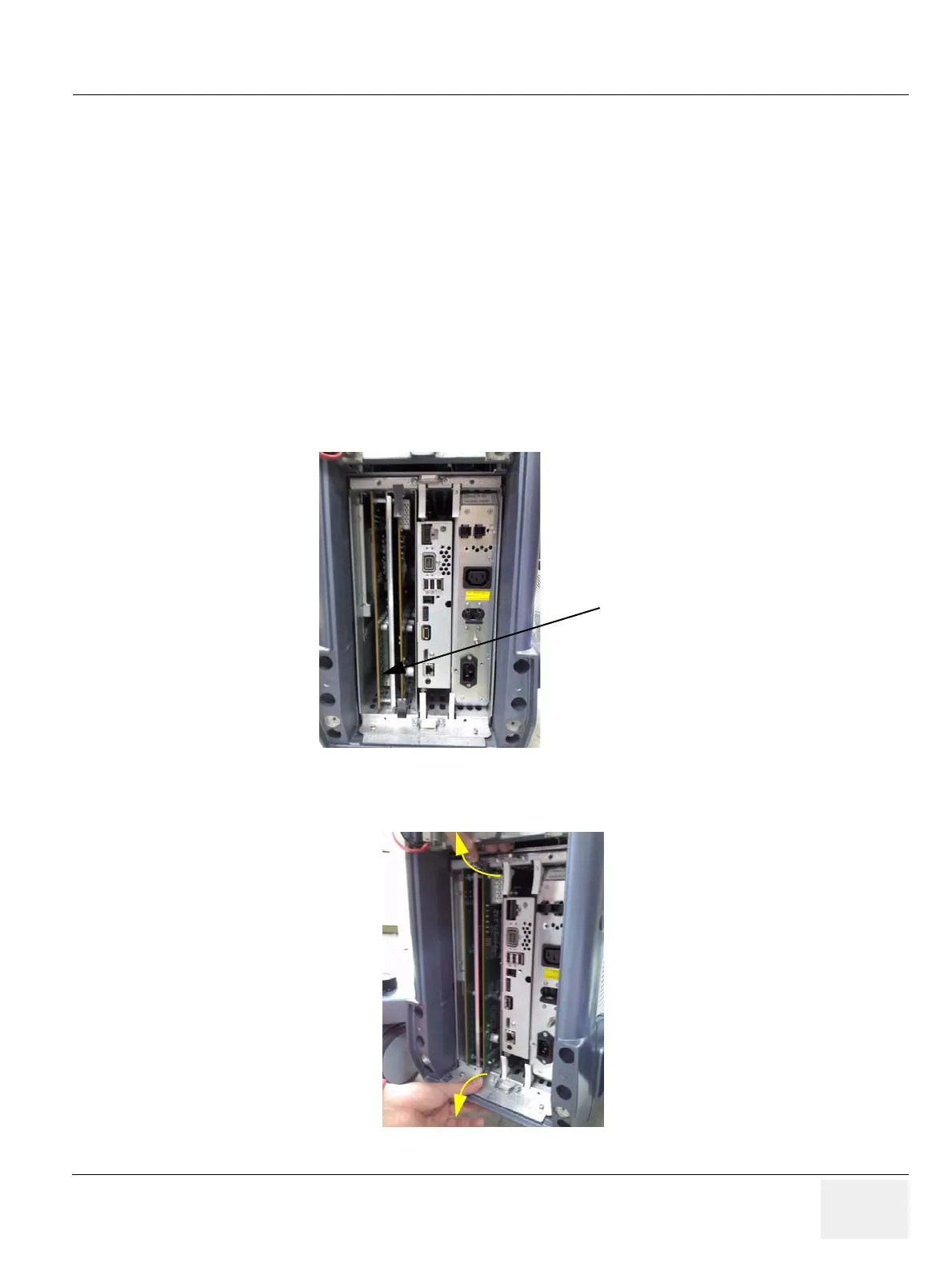

Figure 8-83 BF/PIR
Figure 8-84 Drawing the BF/PIR
BF/PIR
