GE HEALTHCARERAFT VOLUSON® P8 / VOLUSON® P6

DIRECTION 5459672-100, R

EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL

8-66 Section 8-29 - Replacement of the SOM

8-29-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

2.) Perform: FRU8-30: Replacement of the SOM - Functional Tests..

CAUTION

!! CAUTION:

When replacing with new SOM, Push the SOM in both side of RFS ASSEMBLY without putting

weight on the board.

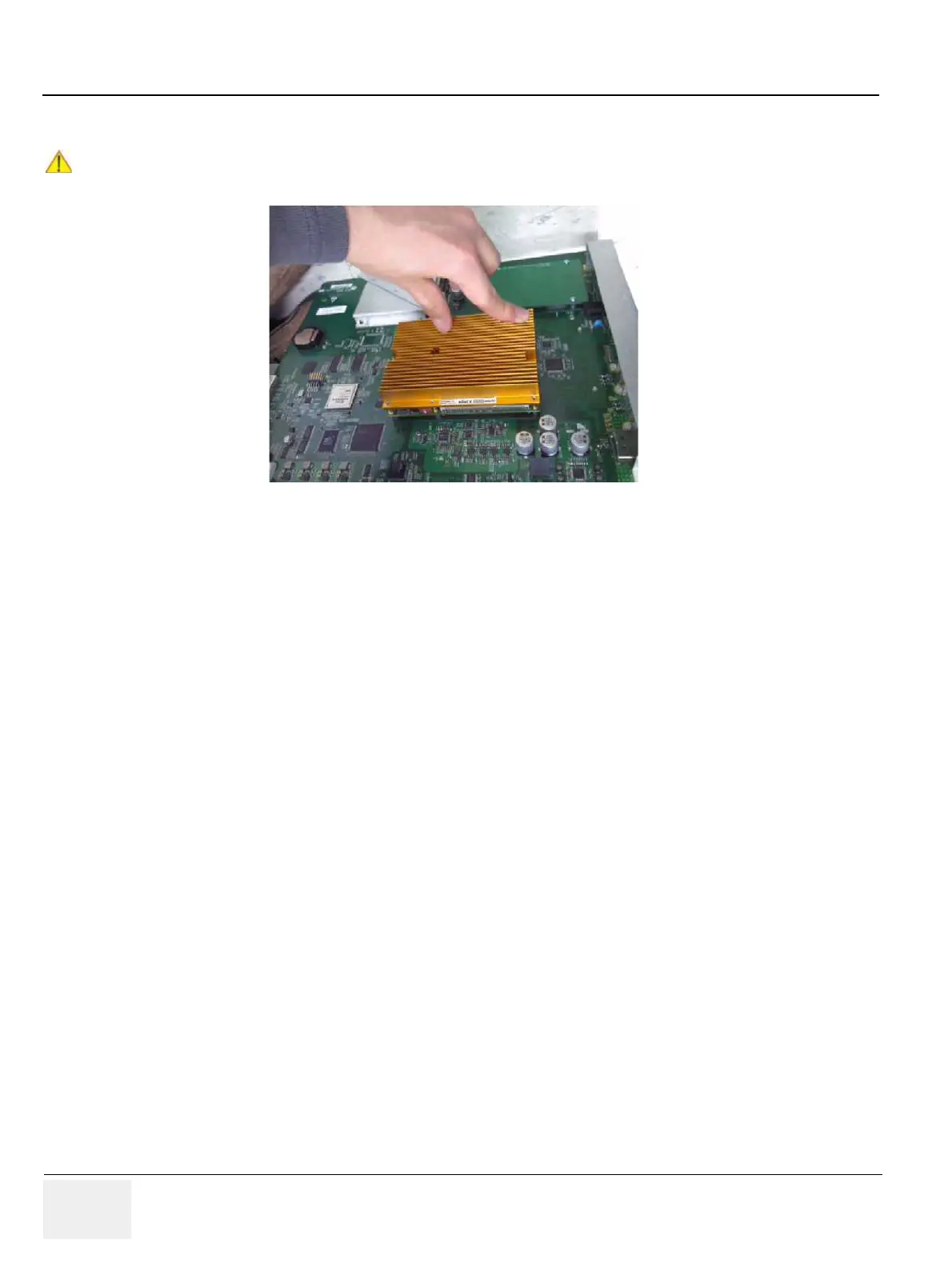

Figure 8-78 Pushing the SOM
