GE Voluson P6 - Section 8-28 Replacement of the RFS; 8-28-1 Manpower; 8-28-2 Tools; 8-28-3 Preparations

GE HEALTHCAREDRAFT VOLUSON® P8 / VOLUSON® P6
DIRECTION 5459672-100, R
EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-61
Section 8-28
Replacement of the RFS
8-28-1 Manpower
One person, 30 minutes
8-28-2 Tools
Philips screwdriver, Allen Wrench
8-28-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
2.) Remove the rear cover as described in Section 8-25 on page 8-55, except for pulling out the NEST.
8-28-4 Removal Procedure
1.) Draw the RFS out of the Nest Frame.

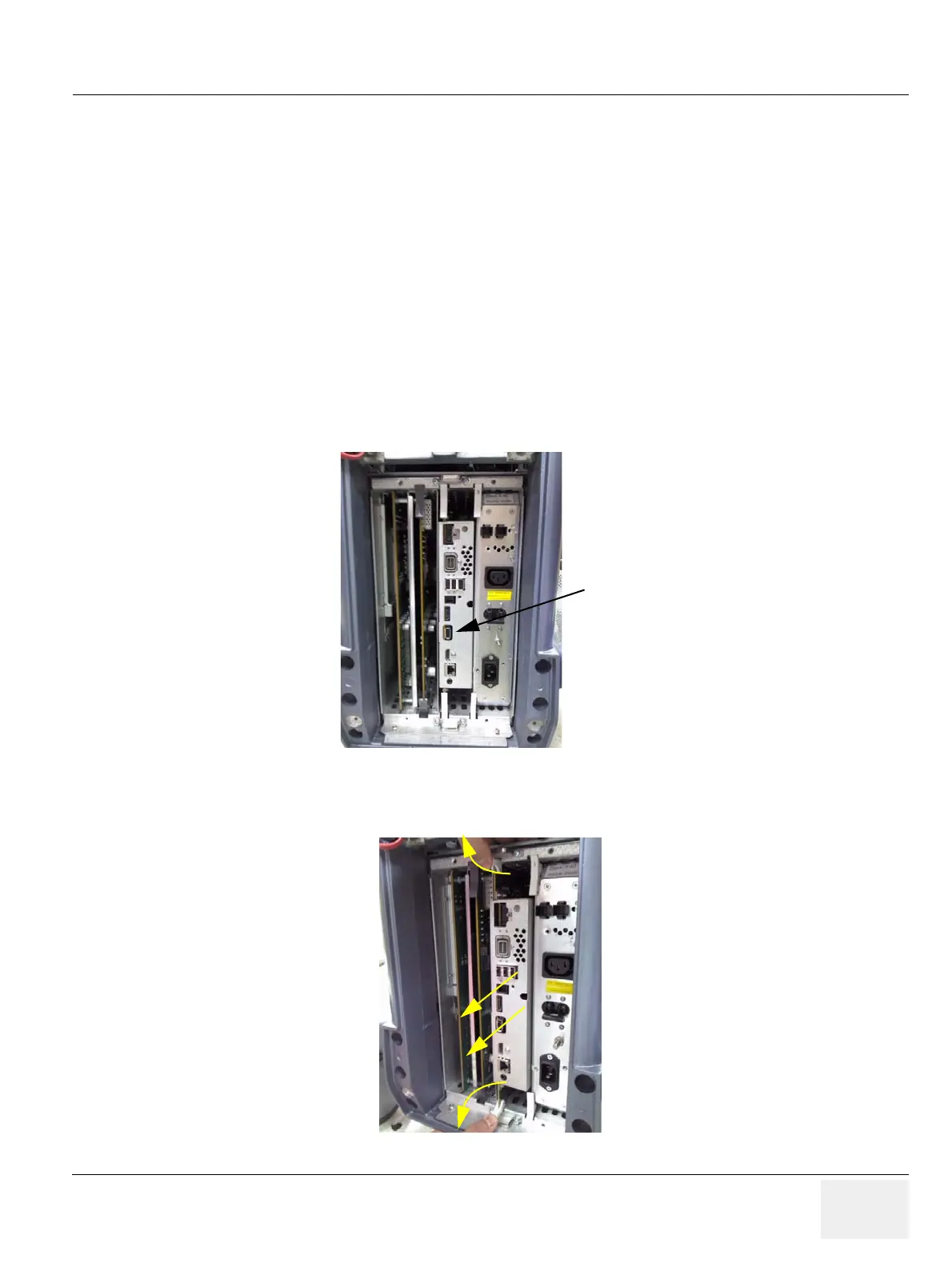

Figure 8-72 RFS
Figure 8-73 Drawing the RFS
RFS
