GE HEALTHCAREDRAFT VOLUSON® P8 / VOLUSON® P6

DIRECTION 5459672-100, R

EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-53

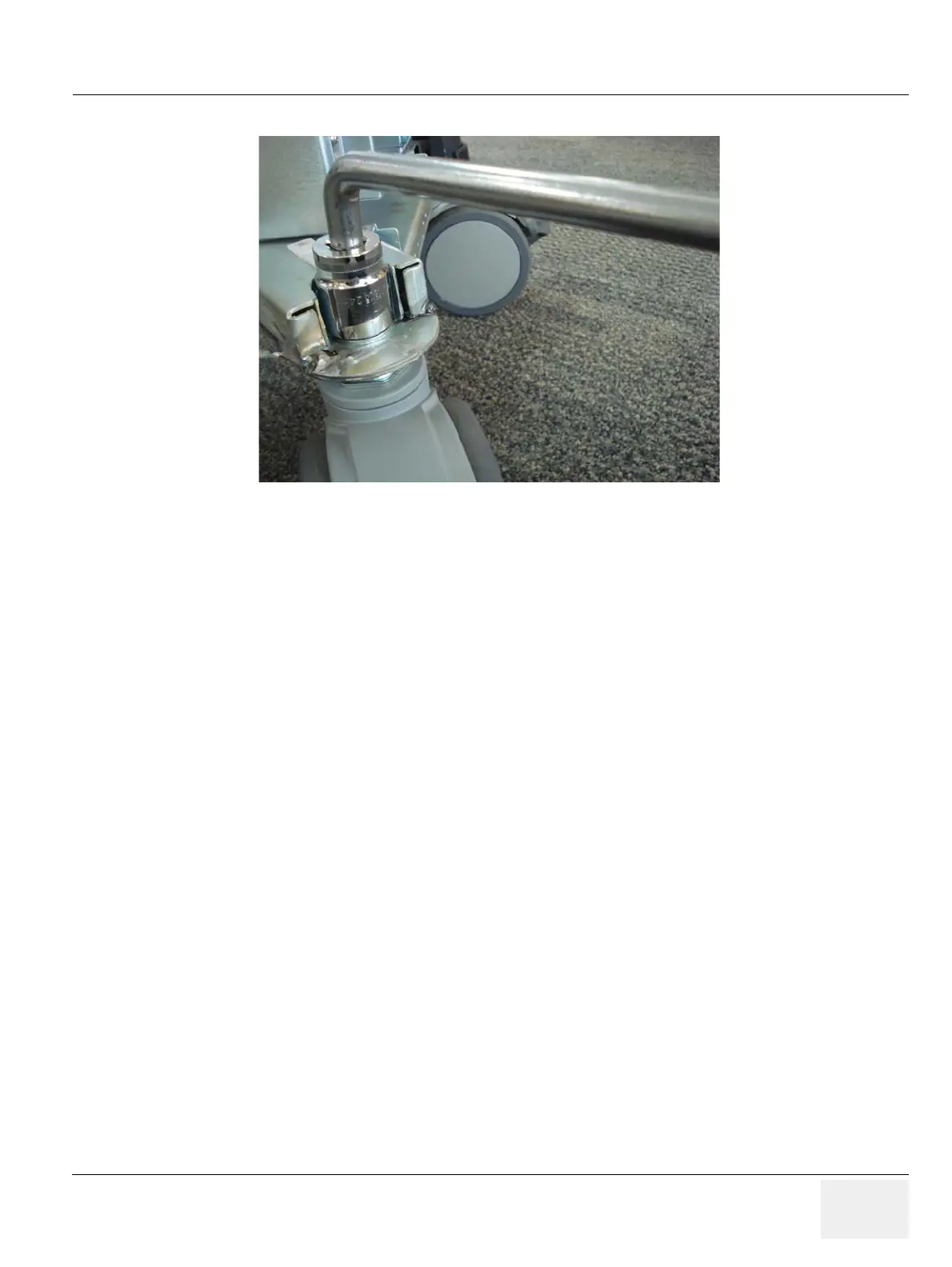

Figure 8-64 Unfasten the nut

8-23-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

2.) Perform: FRU8-22: Replacement of the CASTER - Functional Tests.
