8-74 Section 8-33 - Replacement of the PIR
2.) Unscrew 6 screws.
3.) Remove PIR from the EMI Shield cover.
8-33-5 Installation Procedure
1.) Install the new parts in the reverse order of removal.
2.) Perform: FRU8-34: Replacement of the PIR - Functional Tests..

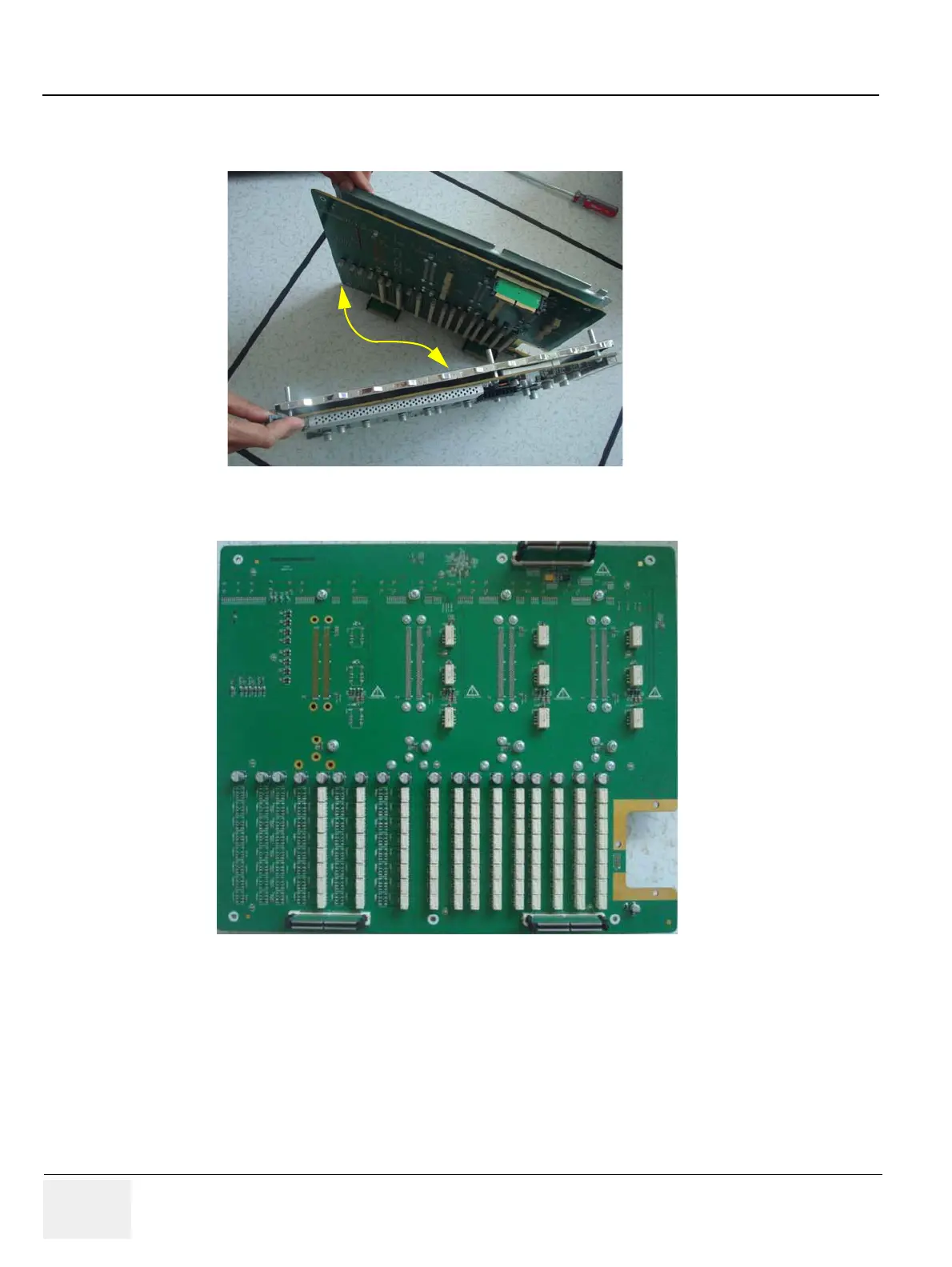

Figure 8-88 Removing the bracket
Figure 8-89 Bottom of PIR
