8-26 Section 8-11 - Replacement of OPIO

5.) Remove the ribbon cable.

8-11-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

2.) Perform: FRU8-10: Replacement of OPIO - Functional Tests.

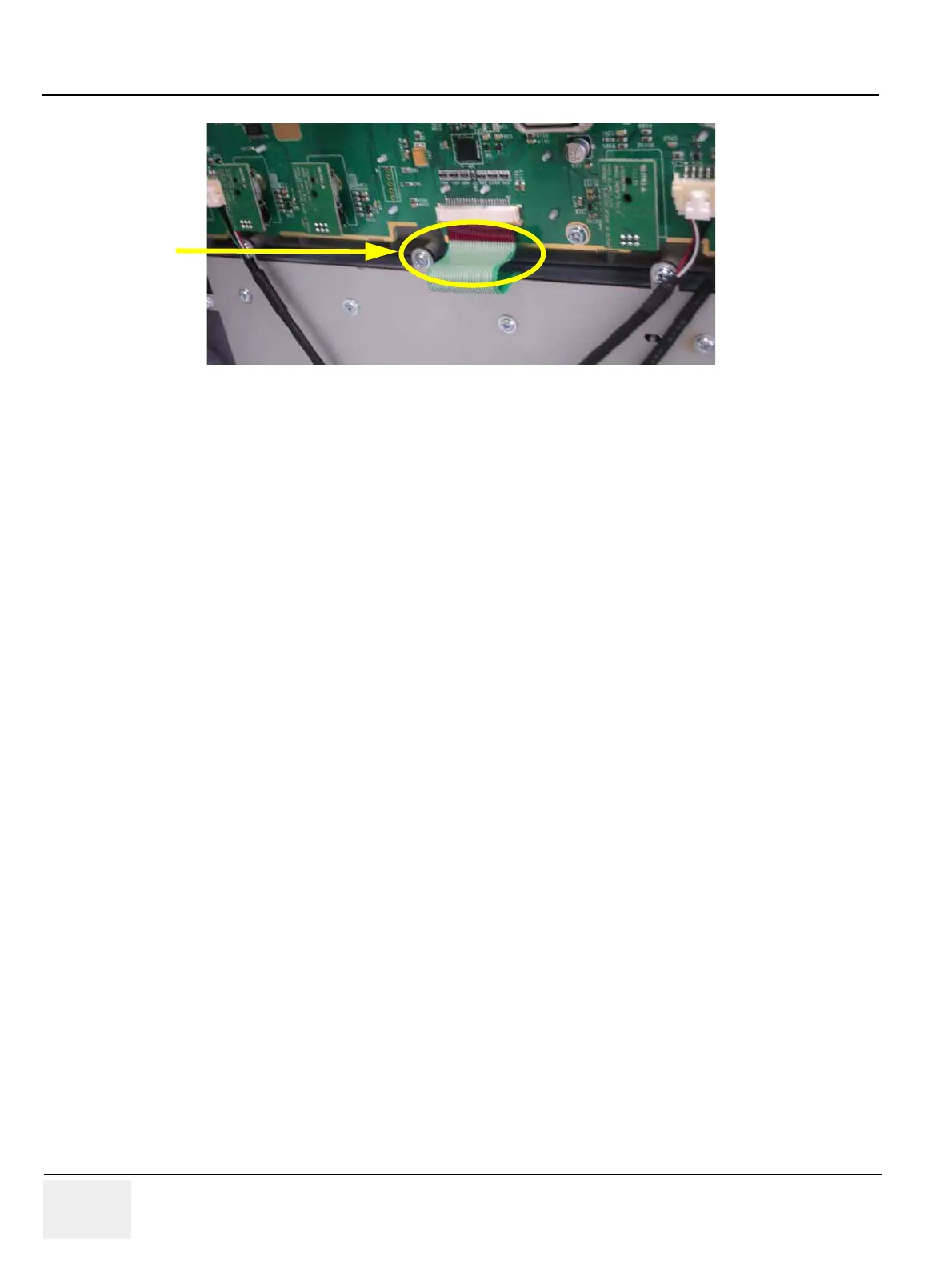

Ribbon cable
