5-2 Section 5-2 - General Information
Section 5-2
General Information
Voluson® P8 / Voluson® P6 is a digital beamforming curved-, linear- and phased array ultrasound
imaging system.
The system can be used for:
• 2D Mode Imaging and additional Operating Modes (XTD-View)
• Color Doppler Imaging (CFM, PD and HD-Flow)
• M Mode + MCF Imaging
• Doppler (PW, CW)
• 3D Mode and Real Time 4D Imaging
• Different combinations of the above modes

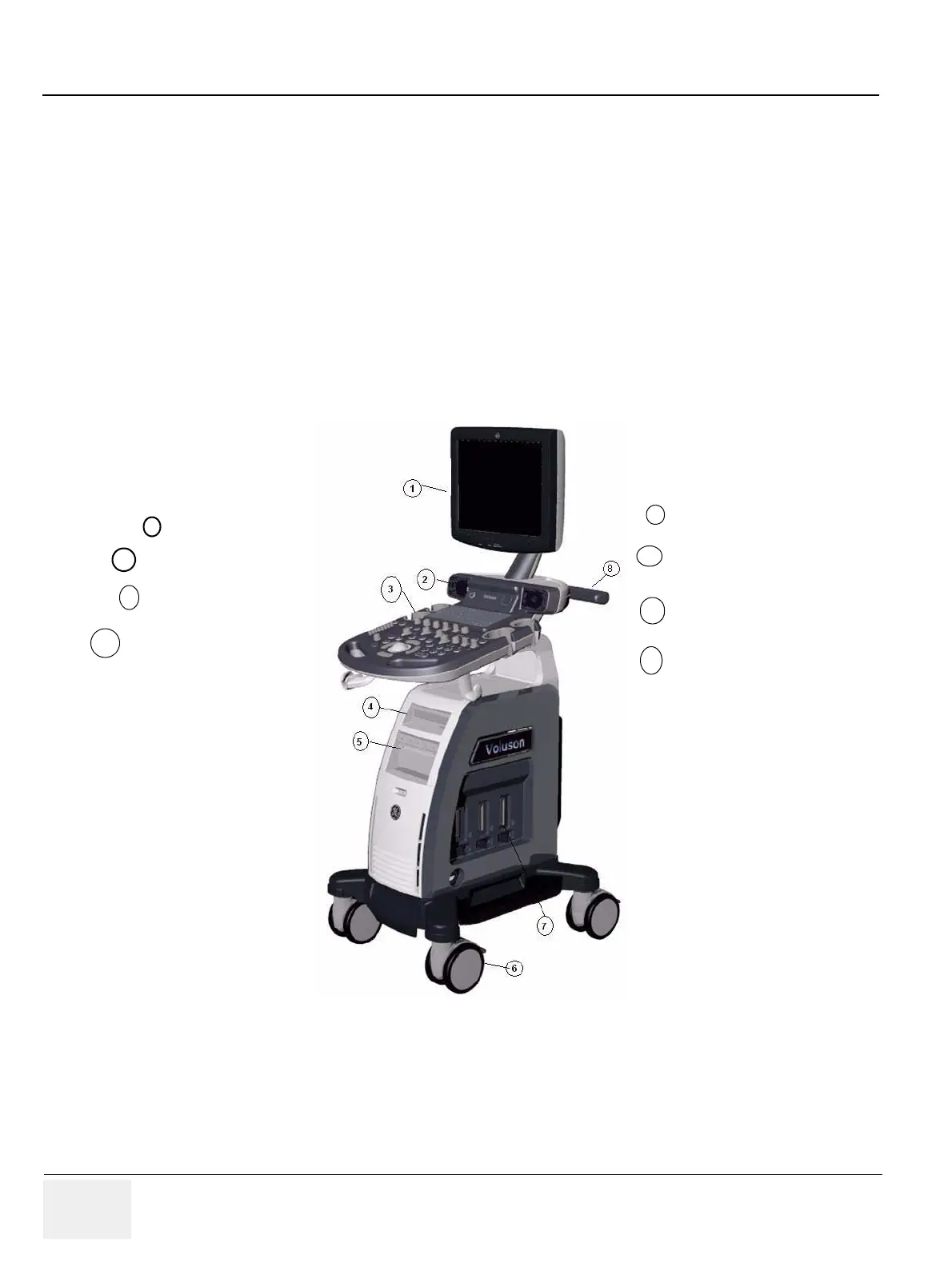

Figure 5-1 Voluson® P8 / Voluson® P6 Major Components
1 Monitor
3
2
Loudspeaker
Probe Holder
4
DVD Drive
5
Place for B/W and/or
Color printer
6
Lockable wheels
7
Probe Connector
8
Transport Handle
