GE Voluson P6 - 8-14-5 Installation Procedure

GE HEALTHCARERAFT VOLUSON® P8 / VOLUSON® P6
DIRECTION 5459672-100, R
EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL
8-36 Section 8-14 - Replacement of the NEST
5.) Unscrew 2 hexagonal socket screws. Refer to the figure below.
6.) Unscrew 7 screws to open the rear bracket.
7.) Pull out the NEST using the 2 handles. Refer to the figure below..
8-14-5 Installation Procedure
1.) Install the new parts in the reverse order of removal.
2.) Perform: FRU8-13: Replacement of the NEST - Functional Tests.

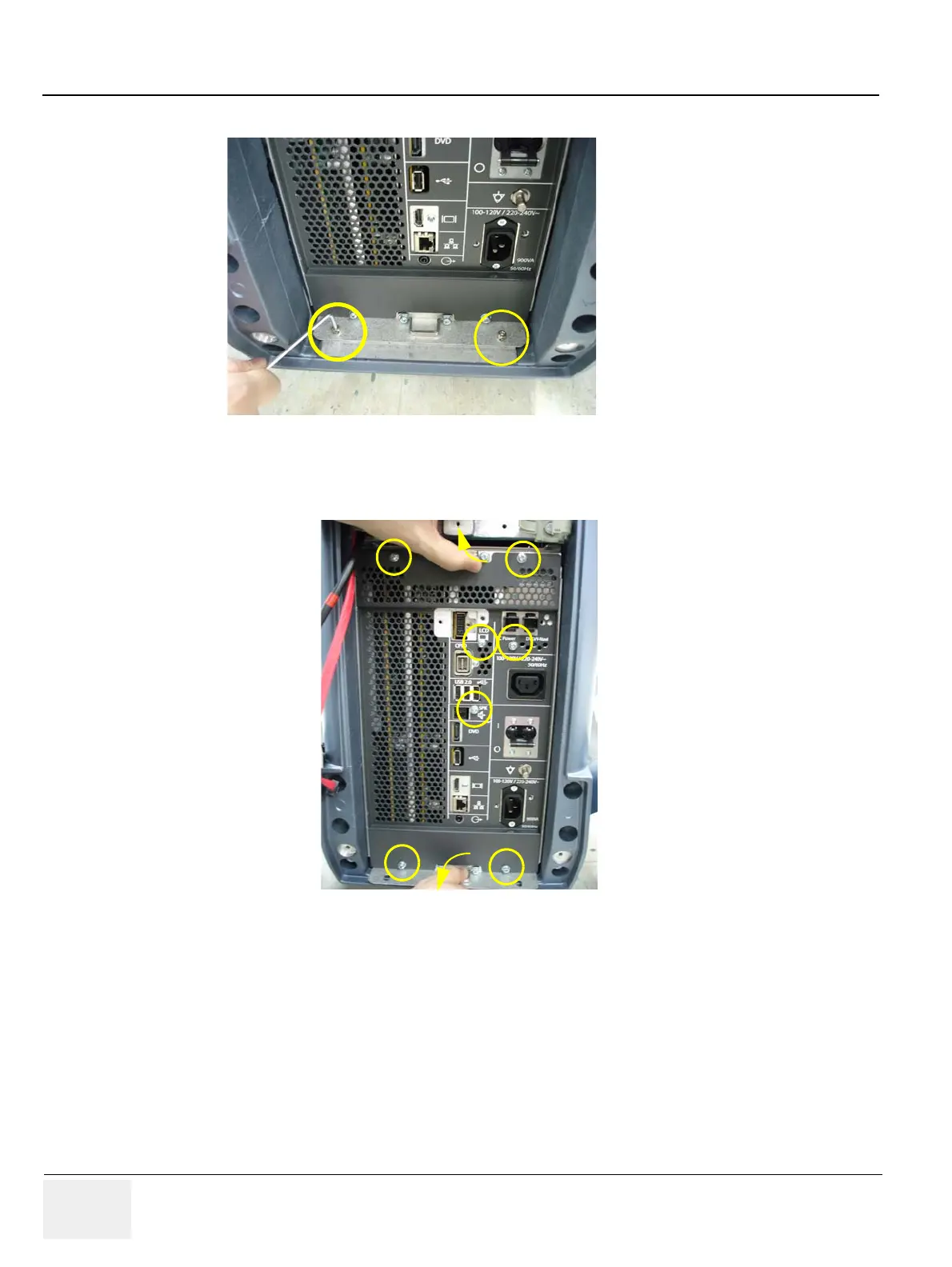

Figure 8-42 Unscrewing 2 hexagonal socket screws
Figure 8-43 Pulling out the NEST
