GE Voluson P6 - 4-4-2 M Mode Checks

GE HEALTHCARERAFT VOLUSON® P8 / VOLUSON® P6
DIRECTION 5459672-100, R
EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL
4-12 Section 4-4 - Functional Checks
4-4-2 M Mode Checks
NOTE: The AMM menu is only displayed if the Anatomical M-Mode option is installed.

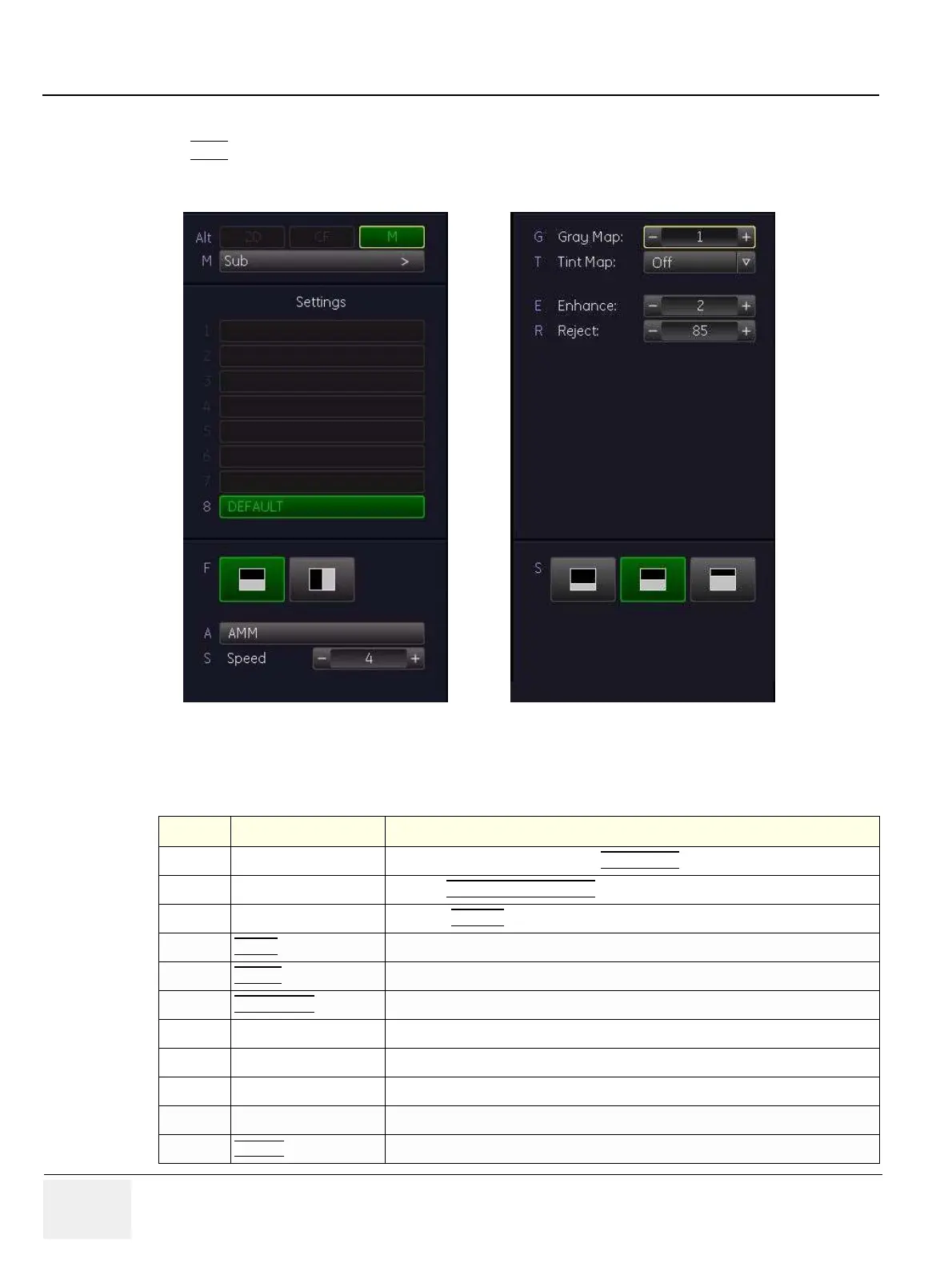

Figure 4-9 M Main and M Sub Menu
Table 4-4 M Mode Functions
Step Task Expected Results
1
Cursor Position Adjust the M Cursor position with the TRACKBALL
in the 2D Single image.
2
Activation of M Mode Press the right or left trackball key
to activate both Modes (2D/M).
3
M Mode Gain Rotate the M MODE
key to adjust the sensitivity (brightness) of the entire M image.
4
SPEED By adjusting + or -, four different sweep speeds can be selected.
5
INVERT Invert of the M Mode image. (Function is only available with endovaginal probes.)
6
FREQUENCY resp. Common with 2D Mode Receiver Frequency Range.
7
TGC Slider Controls Common with 2D Mode TGC Slider Controls
8
Transmit Power Common with 2D Mode Transmit Power
9
M Mode Depth Common with 2D Mode Depth.
10
M Cineloop Common with 2D Mode CINE Mode
11
REJECT It determines the amplitude-level below which echoes are suppressed (rejected).
