GE Voluson P6 - Section 8-30 Replacement of the HDD; 8-30-1 Manpower; 8-30-2 Tools; 8-30-3 Preparations

GE HEALTHCAREDRAFT VOLUSON® P8 / VOLUSON® P6
DIRECTION 5459672-100, R
EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-67
Section 8-30
Replacement of the HDD
8-30-1 Manpower
One person, 30 minutes
8-30-2 Tools
Philips screwdriver, Allen Wrench
8-30-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
2.) Remove the rear cover as described in Section 8-25 on page 8-55, except for pulling out the NEST.
3.) Remove the RFS board as described in 8-28-3 on page 8-61.
8-30-4 Removal Procedure
1.) Unscrew 8 screws and pull the HDD out of the RFS..
2.) Remove the bracket from the hard disk.

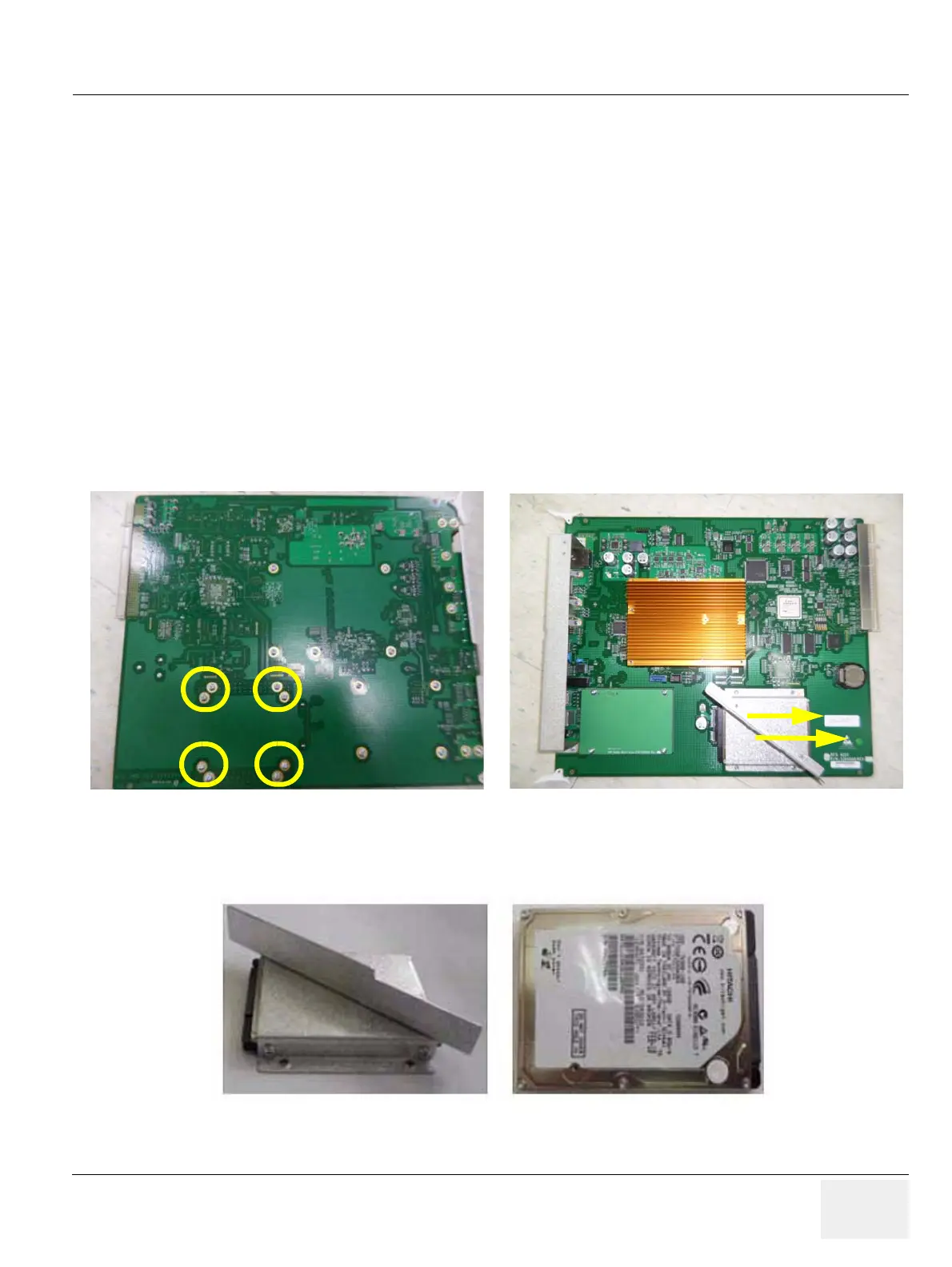

Figure 8-79 Pulling the HDD
Figure 8-80 Removing the bracket
