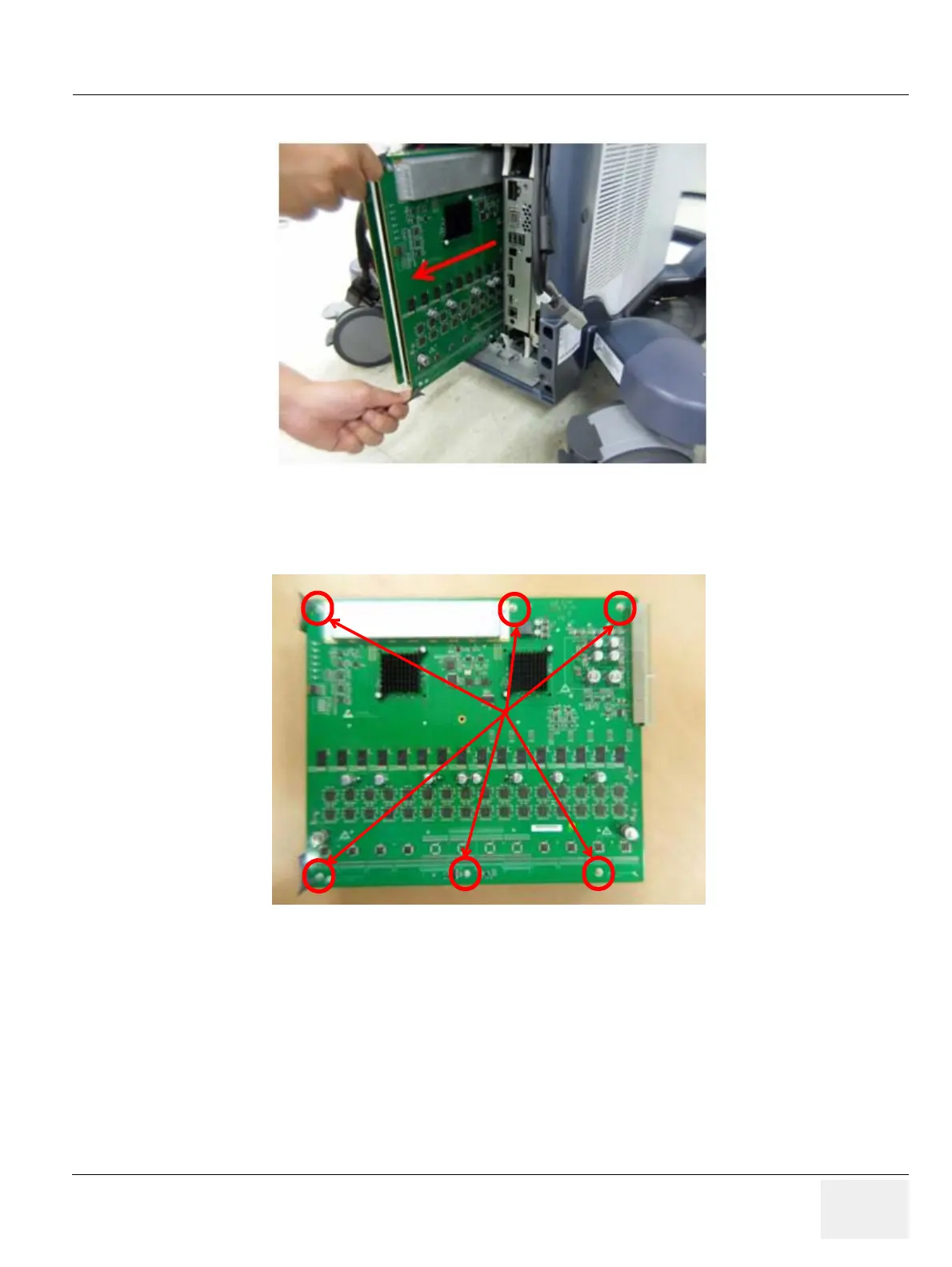

6.) Pull out BF64/PIR Boards.
Figure 8-139 BF64/PIR Boards
7.) Unscrew 6 screws and replace BF64(p/n:5396937) to BF64C Boards which have CWD Circuits.
Figure 8-140 BF64C Board
8-44-5 Installation Procedure
1.) Install the new board assy in the reverse order of removal procedure.
2.) Perform: - Functional Tests
.
Unscrew 6 screws
