GE Voluson P6 - 8-20-5 Installation Procedure

To Next Page

To Previous Page

GE HEALTHCARERAFT VOLUSON® P8 / VOLUSON® P6

DIRECTION 5459672-100, R

EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL

8-48 Section 8-20 - Replacement of the TGC BOARD

3.) Disconnect TGC BOARD CABLE. Refer to the figure below.

4.) Unscrew 4 screws. then pull out the TGC BOARD. Refer to the figure below.

8-20-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

2.) Perform: FRU8-19: Replacement of the TGC BOARD - Functional Tests.

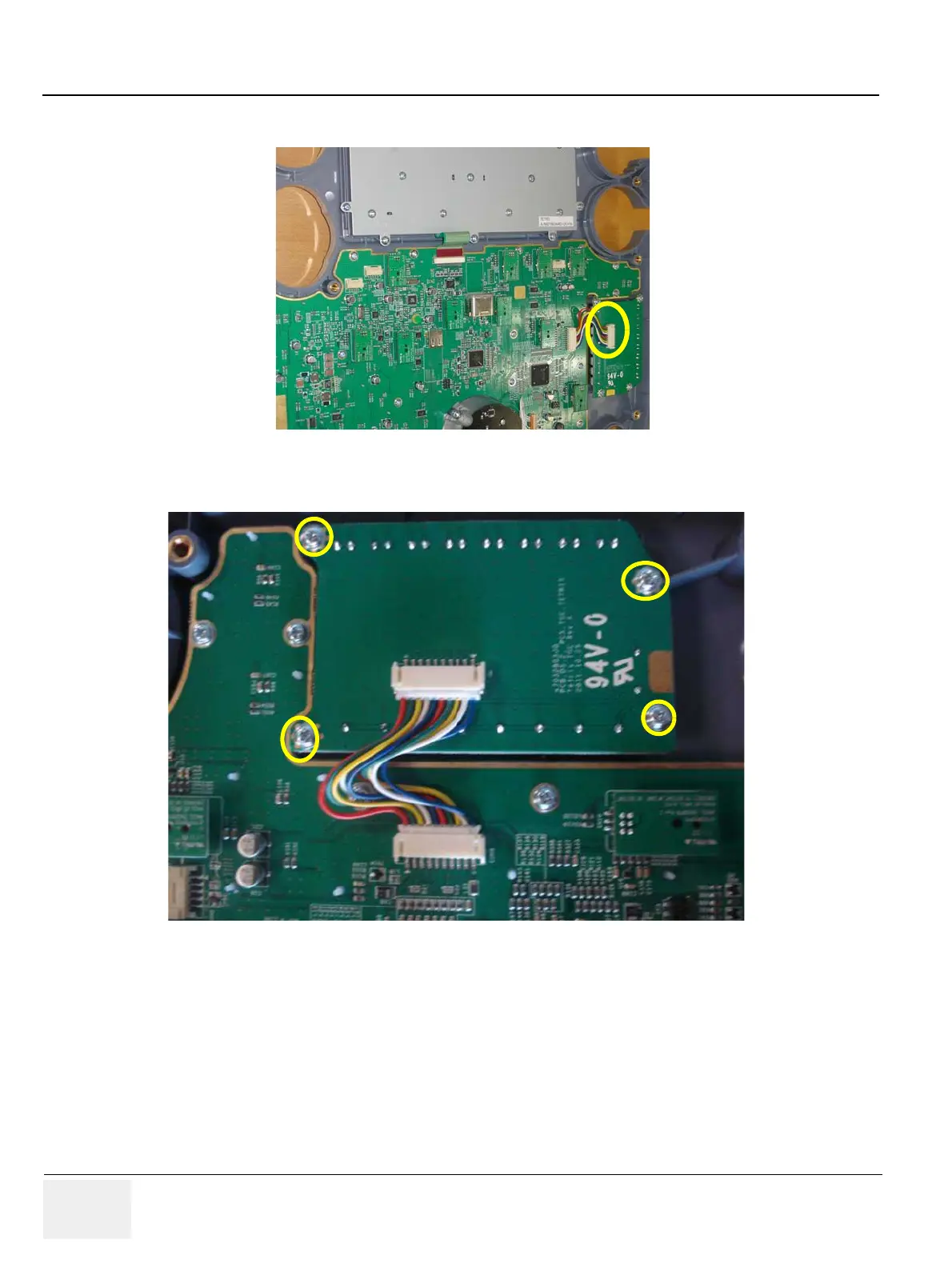

Figure 8-58 Disconnecting TGC BOARD CABLE

Figure 8-59 Unscrewing 4 screws and pulling out the TGC BOARD
