GE HEALTHCAREDRAFT VOLUSON® P8 / VOLUSON® P6
DIRECTION 5459672-100, R
EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL
Chapter 7 - Diagnostics/Troubleshooting 7-29
Section 7-7 How to use the Auto Tester program (cont’d)

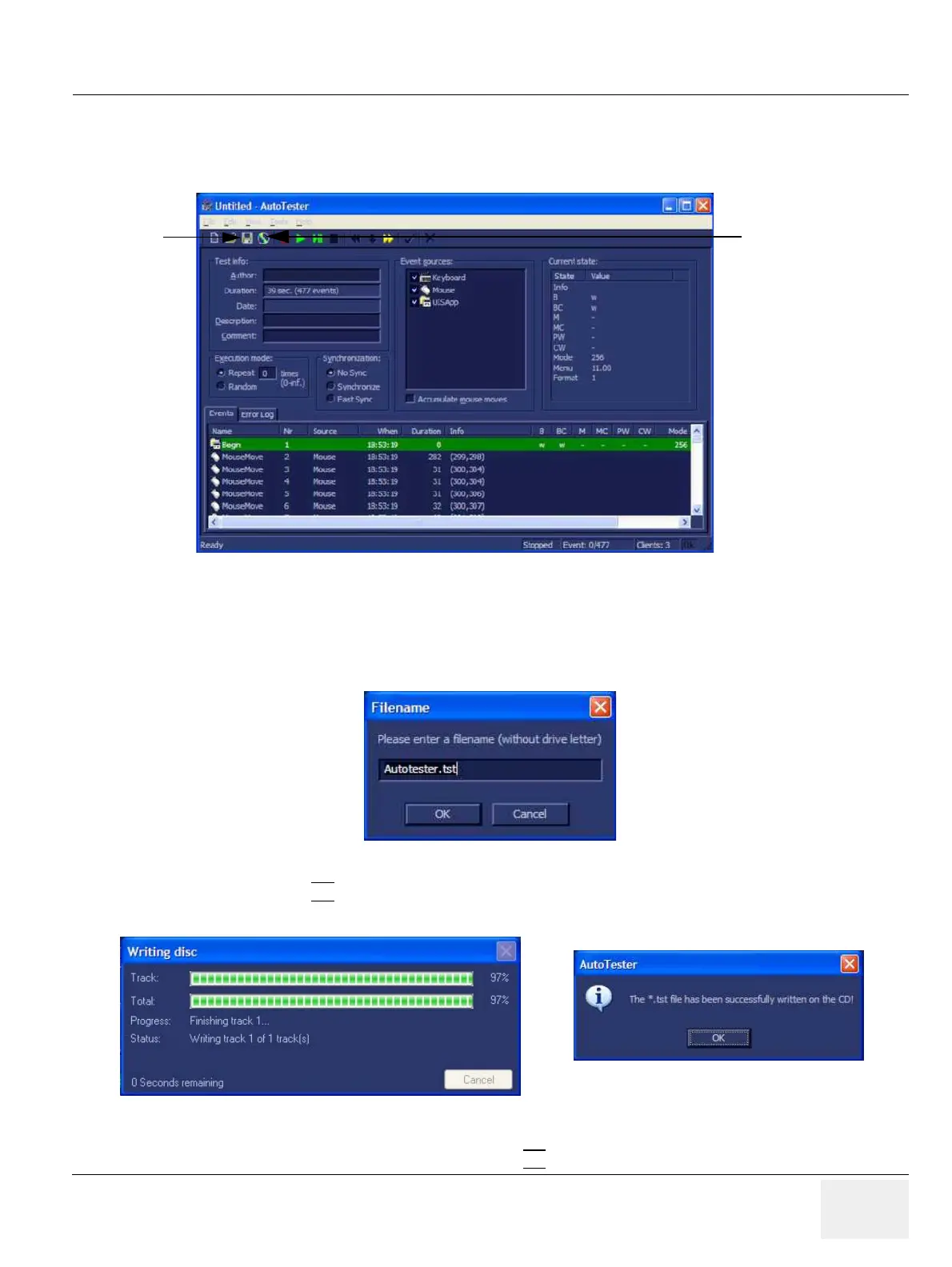

The following screen will appear.
12.)Insert an empty DVD/CD+R/RW in the Drive and select the “DVD/CD Burn” icon.
Or hit “Disc icon” to save to export.
13.)Enter a Filename.
14.)After clicking OK
, the following message boxes will appear.
15.)After the DVD/CD write is finished click the OK
button and then close the “Auto Tester” program.
Figure 7-33 Auto Tester Finished
Figure 7-34 Enter a Filename
Figure 7-35 CD Burn Process
“DVD/CD Burn”
icon
“Disc” icon
To Next Page
