9.) Unscrew 7 fasteners and disassemble rear EMI cover.
10.)Unscrew 2 fasteners and disassemble printer EMI cover 1 and 2.

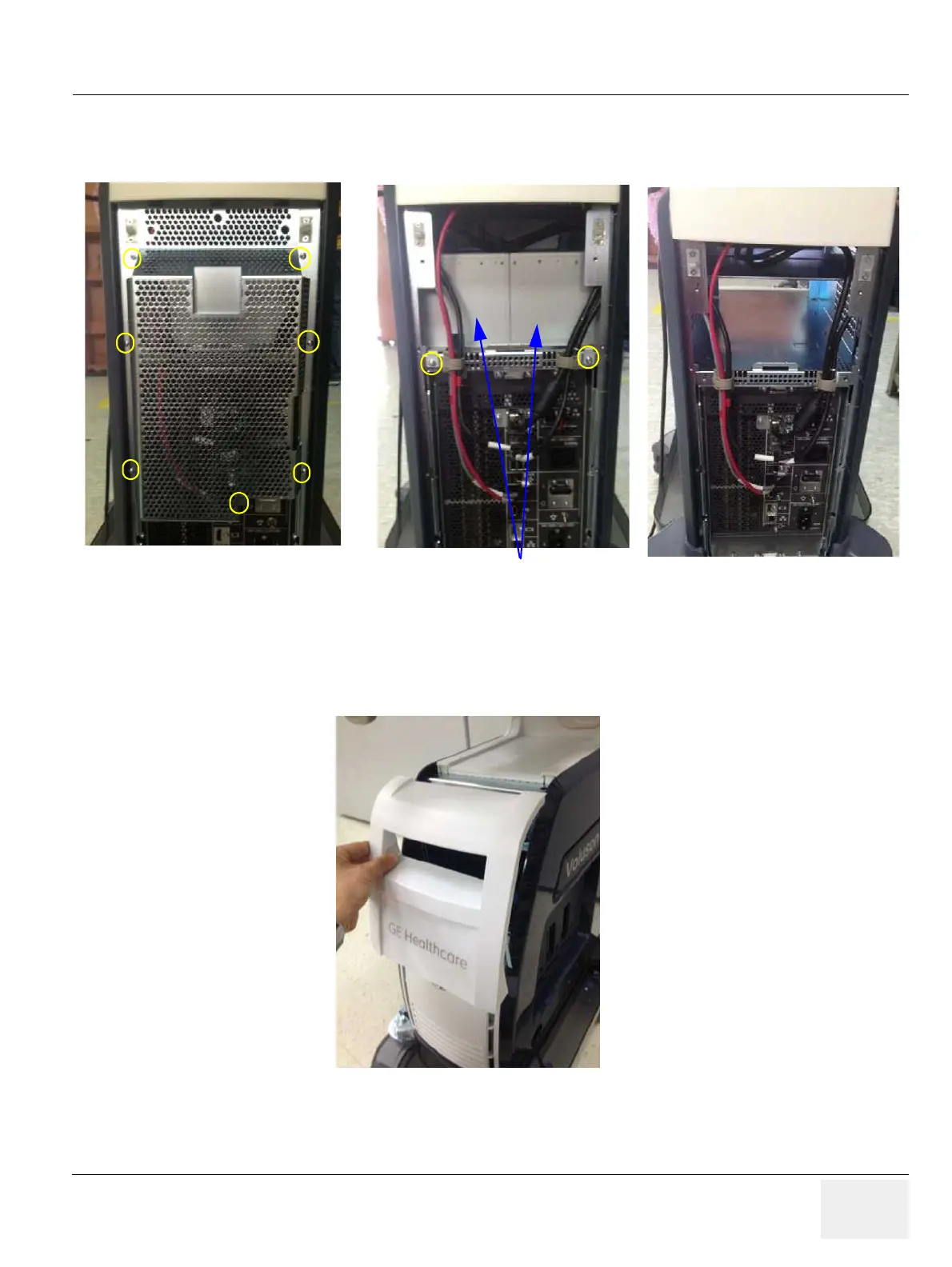

Figure 8-108 Disassemble printer EMI covers
11.)Disassemble front cover.
Figure 8-109 Front cover
Unscrew 7 fasteners
2 fasteners and printer EMI covers
1 and 2
Rear side view after removing the
EMI covers 1 and 2
