6-28
Corrective Actions

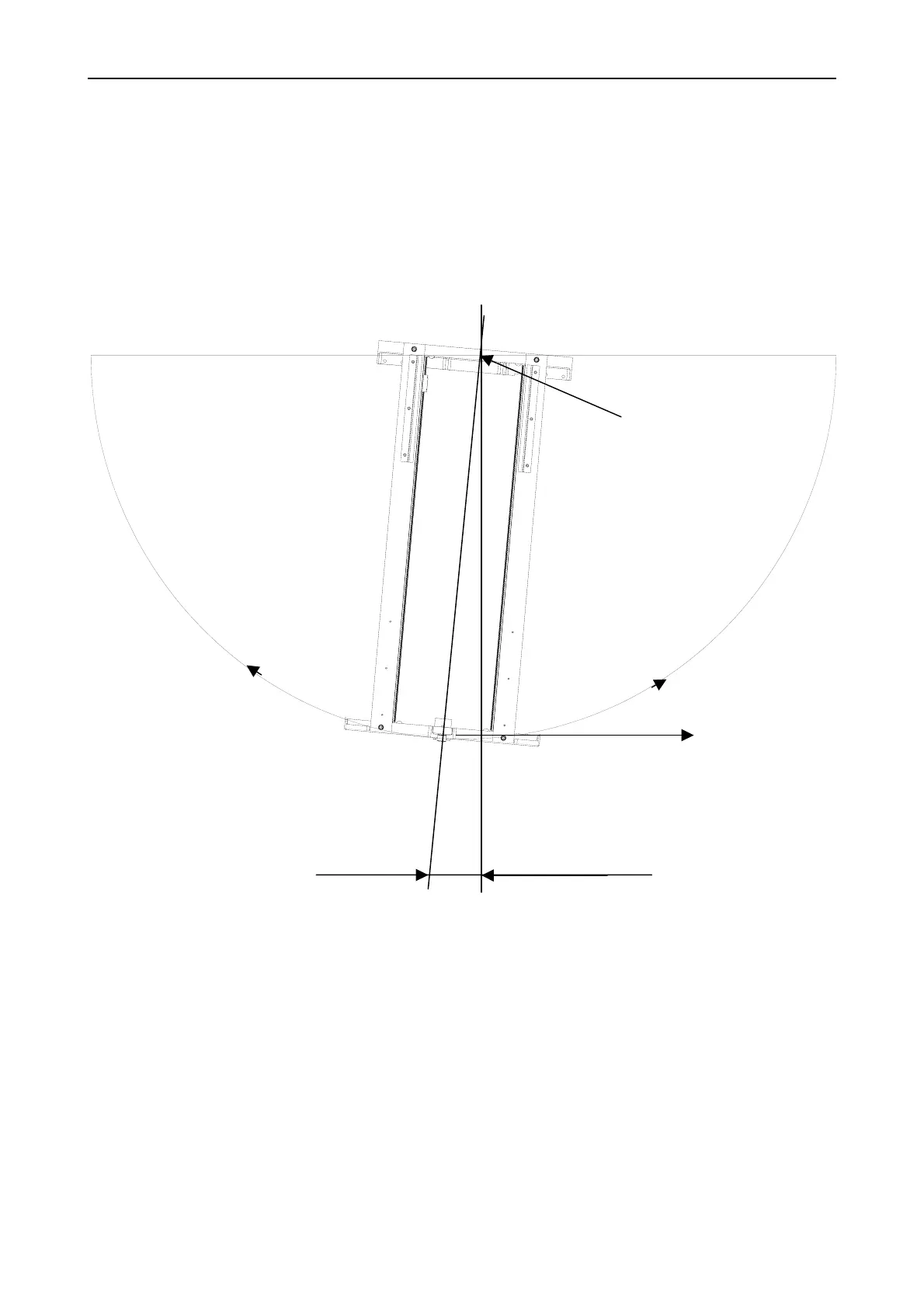

Seeing as the back of the Pipetting Arm connected onto the slides as pivot point in
Z-Axis, the Pipetting Arm may only turn in X-Direction (counterclockwise). In this
example, the corrective action would be turning the Pipetting Arm in positive X-
Direction (counterclockwise).
-
33
X
-
Axis
