HEIDENHAIN TNC 430 PA/M User Manual

December 2001 Overview of Components 2 – 15

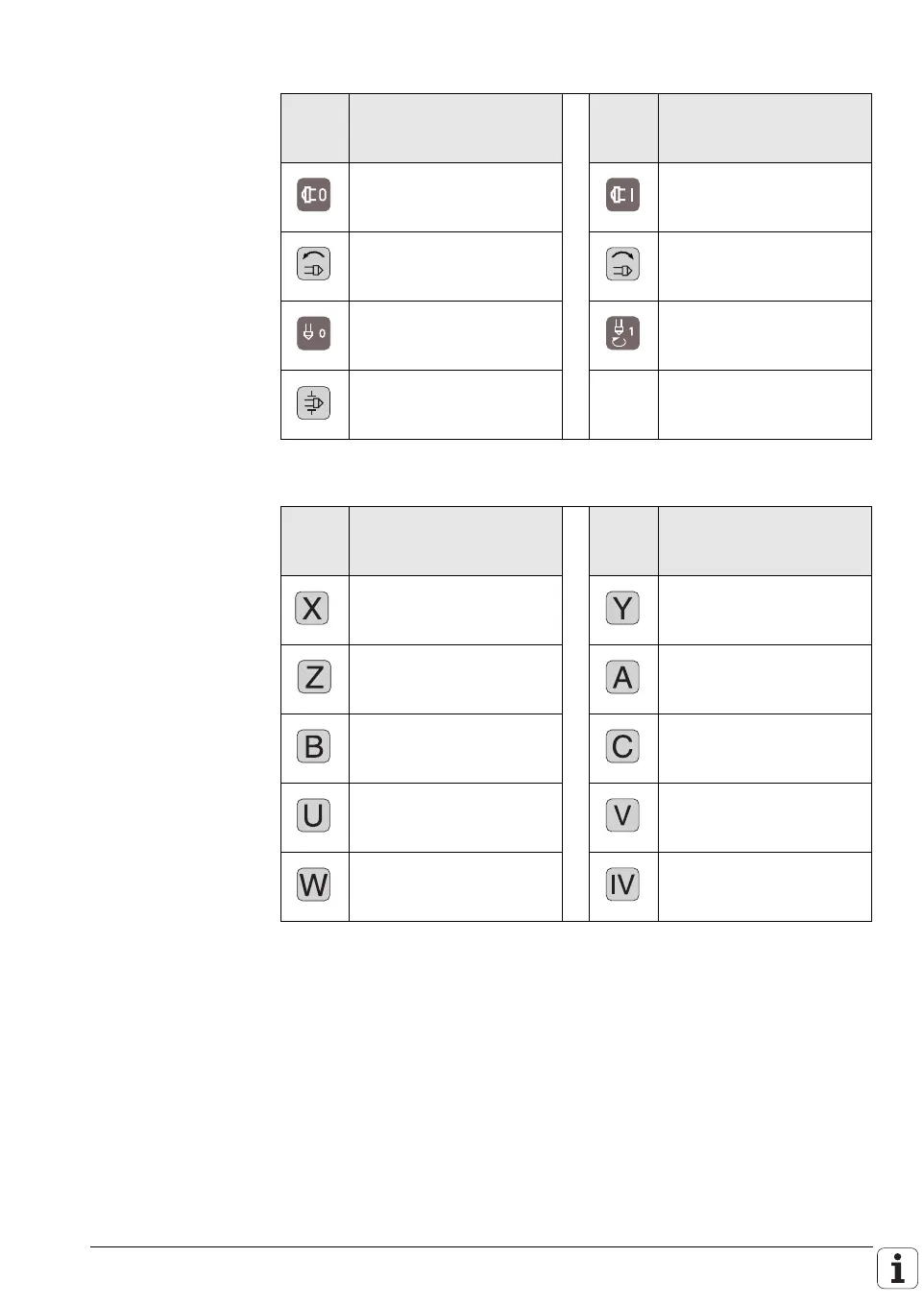

Key symbols for the spindle
Key symbols with axis designations
Key Designation
Print/Background
Id. Nr.
Key Designation
Print/Background
Id. Nr.
Spindle stop
White/Red
330 816-08
Spindle start
White/Green
330 816-09
Spindle direction left
Black/Gray
330 816-40
Spindle direction right
Black/Gray
330 816-41
Spindle stop
White/Red
330 816-47
Spindle start
White/Green
330 816-46
Clamp the axis
Black/Gray
330 816-48
Key Designation
Print/Background
Id. Nr.
Key Designation
Print/Background
Id. Nr.
X
Black/Orange
330 816-24
Y
Black/Orange
330 816-36
Z
Black/Orange
330 816-25
A
Black/Orange
330 816-42
B
Black/Orange
330 816-26
C
Black/Orange
330 816-23
U
Black/Orange
330 816-43
V
Black/Orange
330 816-38
W
Black/Orange
330 816-45
IV
Black/Orange
330 816-37

HEIDENHAIN TNC 430 PA/M Specifications

General

Axis Control	Digital
Operating Voltage	24 V DC
Control Type	CNC
Display	Color LCD
Interfaces	RS-232, Ethernet
Programming	HEIDENHAIN conversational programming
Spindle Control	Digital
Input Voltage	100-240 V AC
