HEIDENHAIN TNC 430 PA/M - Compare GRE1 with ISTREG Program Module

6 – 450 HEIDENHAIN Technical Manual TNC 426, TNC 430

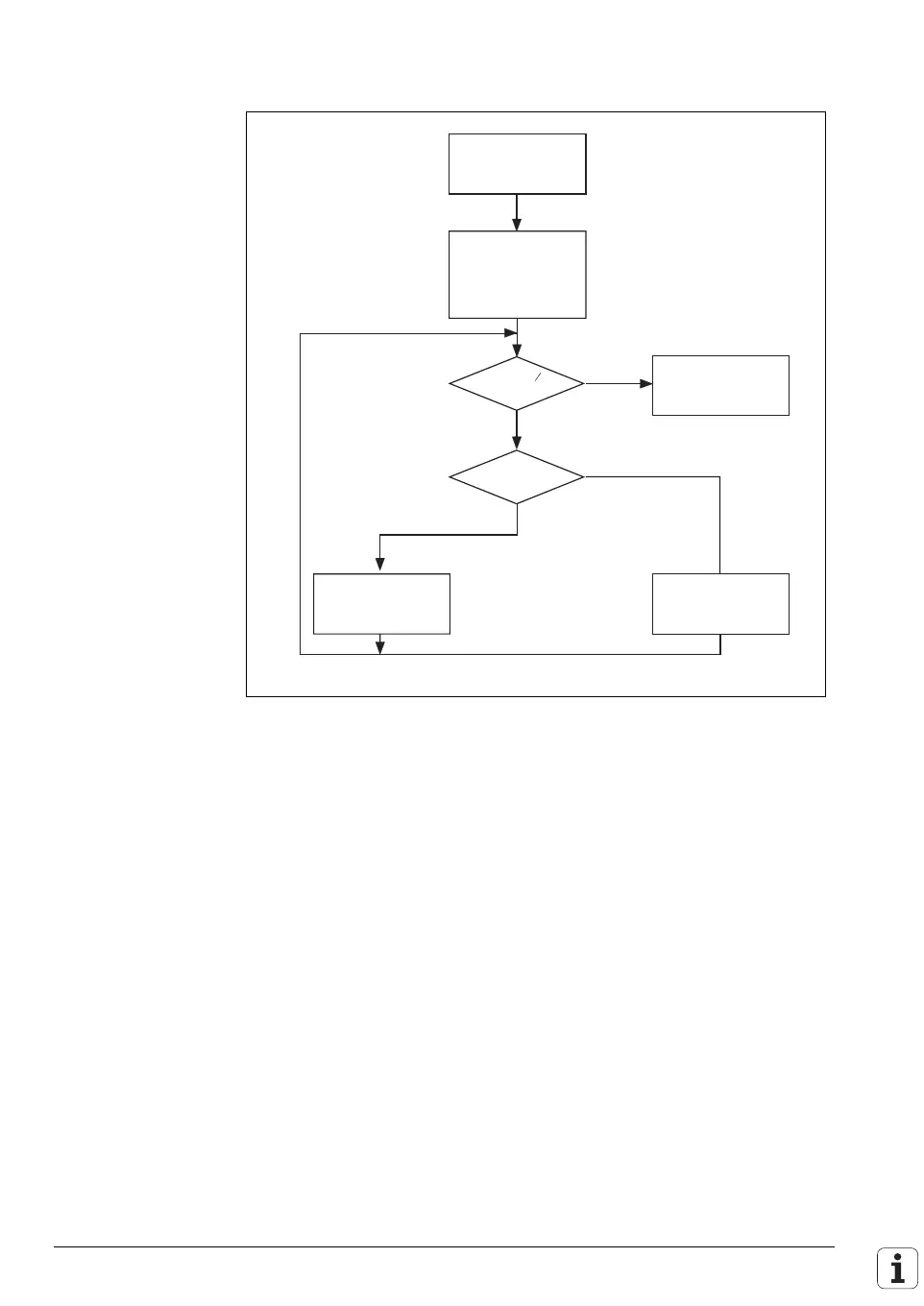

COMPARE GRE1
WITH ISTREG
program module
The tool magazine is positioned in the shortest direction to the pocket number
that is located in GRE1.
COMPUTE THE
SHORTEST
PATH IN
M3042
Module
Transfer GRE 1
to data stack
No
Yes
GRE1 =
ISTREG
Yes
M3042 = 1
No
Index magazine
forward
End
Index magazine
reverse
