6.8 Inter-lock Function
______________________________________________________________________________________________
0
:
Not set (Initial setting)
1
:
Set
NOTE
The Inter-lock function can be set only when
INT.LOCK
――――――――――
(Pin 10) of the external
I/O terminal is set at LOW level. If the terminal is set at HIGH level, "0: Not set"
remains effective even if the
/
ke
y
sare
p
ressed.
6.8 Inter-lock Function
Settings can be made to specify whether to use the Inter-lock function with
the external I/O terminal.
If "0: Not set" is selected, the Inter-lock function is cancelled regardless of
the state of Pin 10 on the external I/O terminal.
If "
1
: Set" is selected, the Inter-lock function may be disabled, depending on
the state of Pin 10 of the external I/O terminal. For the Inter-lock function,
see Section 8.1.4, "Inter-lock Function."
1.

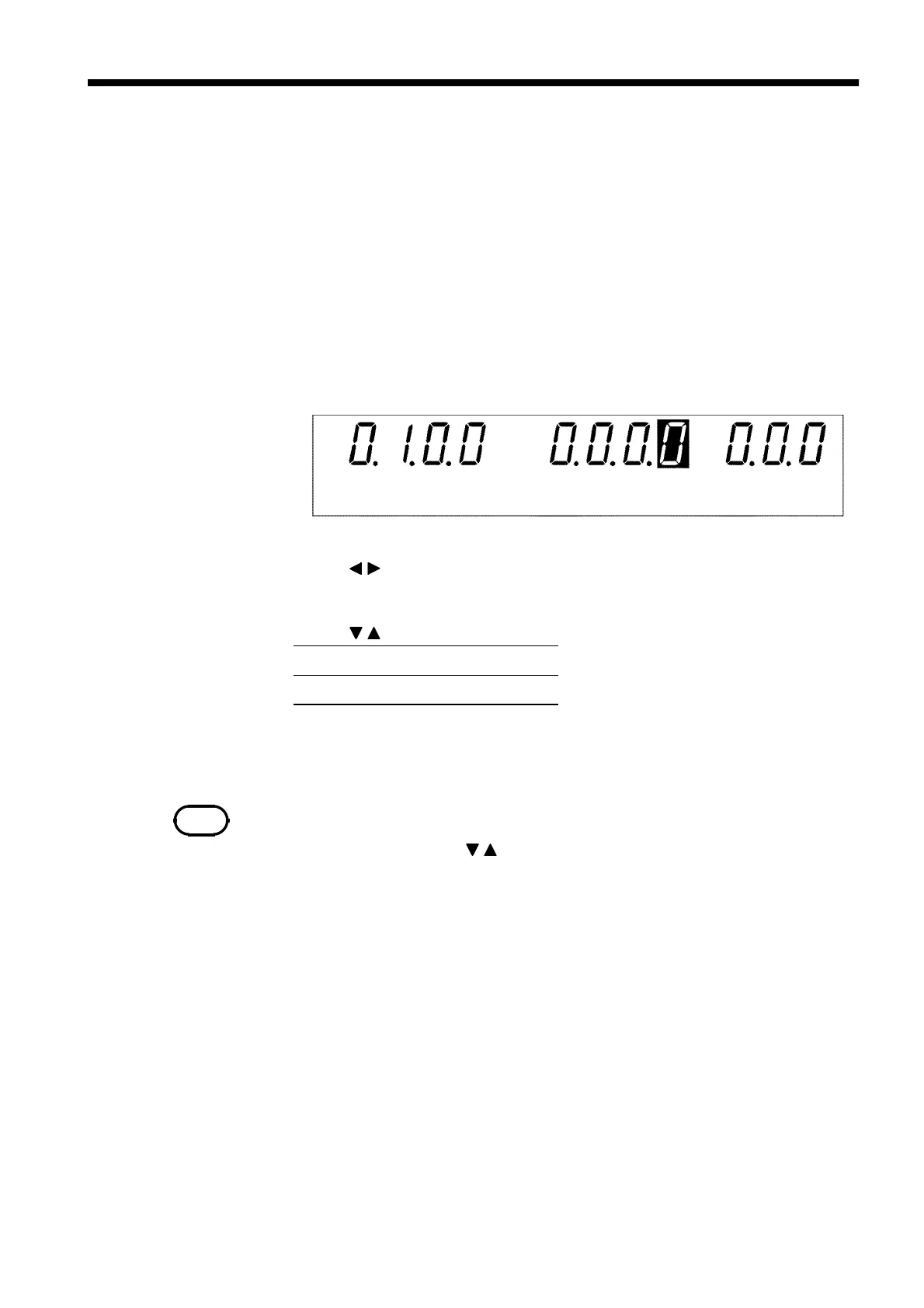

Press SHIFT + STOP keys while in READY state to display the Optional
function setting screen.
2. Use the
/ keys to move the flashing cursor to the position shown in the
figure.
3. Use the
/ keys to set a value at the flashing cursor location.
4.
To complete the optional settings, press SHIFT + STOP keys. The unit
reverts to the READY state.
